Card Master - Cumulative Example

If you make Card 1 as the Card Master for Card 2, and make Card 2 as the Card Master for Card 3, then content from both Card 1 and Card 2 will be displayed in Card 3.

The following example illustrates this concept.

  1. Continuing the example from the section called “Using a Card Master”, drag and drop a Grid component to Card 2.
  2. Add a new card (Card 3) and make Card 2 as the Card Master for Card 3.

    Figure 4.5. Set Card 2 as Master for Card 3

    Set Card 2 as Master for Card 3
  3. Notice how the Label component from Card 1 and the Grid component from Card 2 are displayed in Card 3.

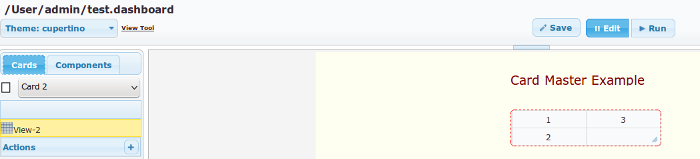

    Figure 4.6. Grid in Card 2

    Grid in Card 2

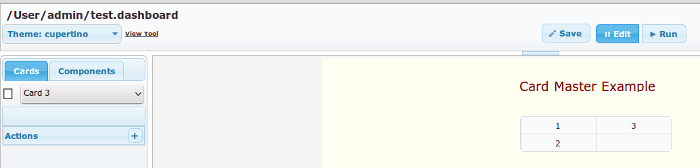

    Figure 4.7. Card 1 and Card 2 Output in Card 3

    Card 1 and Card 2 Output in Card 3
