Chapter 3. Table Band

Table of Contents

Adding Groups
Adding Fields
Searching Information

This chapter describes how to add Groups and Fields to a Table Band. After you finish designing the report, you can export a Table Band to Excel by clicking the Export to Excel icon:

Export Excel.

Figure 3.1. Export to Excel

Export to Excel

Perform the following actions to add elements to the Table Band.

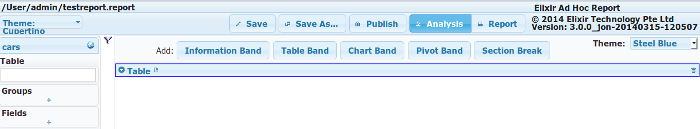

Figure 3.2. Report Elements for the Table Band

Report Elements for the Table Band

Adding Groups

  1. Click the Add Column icon () that is below Groups. The Column Chooser window opens.

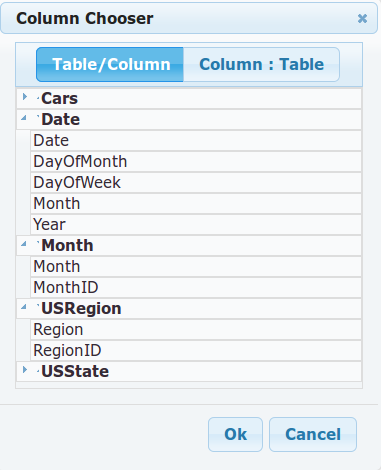

    Figure 3.3. Column Chooser for the Table Band

    Column Chooser for the Table Band
  2. Select one or more columns from the window. Click OK.

  3. Expand the corresponding band on the right pane to view the output. There will be embedded tables, and the upper column will contain the lower column, while the lowest column in Groups will contain the highest column in Fields.

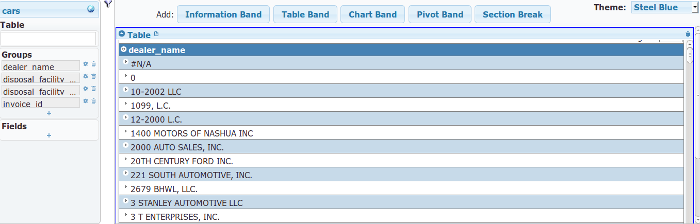

    Figure 3.4. Group Output for the Table Band

    Group Output for the Table Band
