Chapter 8. Office Report Template

Table of Contents

DocX
Getting Started
Comments
DataSources
Parameter
Scripts
Aliases
Hide Processing Instructions
Formatting
Render DocX Report

DocX

Although DocX is a new file format for Word from Microsoft Office 2007, users with Microsoft Office XP and Microsoft Office 2003 can also render a DocX file. To view a DocX file, install the File Compatibility Pack which can be downloaded from Microsoft Download Center, http://www.microsoft.com/downloads/. With OpenOffice, the Compatibility Pack is not required to view.

Getting Started

You cannot create a DocX file using Repertoire Designer. Therefore, you will need a copy of Microsoft Office to create your template. After the template has been created you can put it in the Elixir Repository so the rendering engine can find it.

Once in the Elixir Repository, you can right-click on the DocX file and select View, the DocX file will open in Microsoft Office for editing or viewing (assuming you have Microsoft Office installed).

Comments

There are markers in the document that indicate the locations of the different bands of the template. In most cases, only the start of a comment and the text associated with the comment is important. For RenderIf, described later, both the start and end of the comment are important.

Some comments have special meanings to them and they are listed in Table 8.1, “Comments”.

Table 8.1. Comments

CommentMeaning
Section Indicates the start of data processing. This can be defined by any name.
Header Presents information about the particular data group being view. For instance, the group name and a brief description about the data contained in the group which appears at the beginning of a new group of record. It has the same concept as Group Header in Repertoire Designer. This can be defined by adding the following into the comment:
/Elx/Header
Subreport Contains data from another report. It has the same concept as a Subreport element in Repertoire Designer. This can be defined by adding the following:
/Elx/Subreport
RenderIf Allows for conditional rendering. It has the same use as RenderIf in regular RML reports. This can be defined by adding the following:
/Elx/RenderIf <script>
where <script> can be any JavaScript, such as age>=18. If the script evaluates to true then all the content between the start and end of the comment is included. If the script evaluates to false then all the content between the start and end of the comment is skipped. RenderIf scripts should only be used within, not across report band boundaries like /Elx/Header, /Elx/Detail and /Elx/Footer. If the script is likely to be long, it is advisable to create a function elsewhere and reference it, for example:
/Elx/RenderIf testAge(age)
instead of putting the full script in the comment. See /Elx/Script/ below for more details on creating longer scripts.
Detail Contains the main body of the report's data. The detail section prints individual records and repeat until all records have been printed. It has the same concept as Detail in Repertoire Designer. This can be defined by adding the following into the comment:
/Elx/Detail
Image Contains a column name, extracts the value of image as Binary Array data type from a DataSource, i.e. Blob from a database, and displays the extracted value as image. The Data Type of this column should be ByteArray, and its name must be consistent with the column name in the datasource, where Repertoire Designer will retrieve the value of image. This can be defined by adding the following into the comment:
/Elx/Image/<ColumnName>

Note

Please add this comment where a blob image is supposed to appear, and add a placeholder image as well. The comment should be added just before the placeholder image following the syntax above. In case the placeholder image is not replaced after rendering, please check if the /Elx/Image comment is before the image in reading order (typically left/right top/bottom).
Footer Contains totals or similar information that appears at the end of each group. It has the same concept as Group Footer in Repertoire Designer. This can be defined by adding:
/Elx/Footer
Footer/PageBreakAfter Forces a page break after each group of the report. This is different from using /Elx/Footer comment alone, which will generate line breaks between groups. This can be defined by adding:
/Elx/Footer/PageBreakAfter
End Refers to the end of the Section. This can be defined by adding
/Elx/End

DataSources

Define DataSource File

Defining datasource file is identical to the idea of adding a datasource in Repertoire Designer. It can be defined by entering:\n /Elx/DataSource/<SectionName>/Name/<datasourceName>.ds.

For example:

/Elx/Datasource/Section1/Name/FruitSales.ds

Define DataSource Parameter

This is similar to adding datasource parameter(s) in Repertoire Designer. It is defined as: /Elx/DataSource/<SectionName>/Parameter/Name/<ParameterValue>.

For example:

/Elx/DataSource/Section1/Parameter/Name/${Company}

Group and Sort Data

Grouping and sorting of data in DocX has the same concept as Group and Sort in Repertoire Designer. Grouping is done for categorization of data into various logical collections. Sorting is for arranging the data in ascending/descending order. They are defined by: /Elx/DataSource/<SectionName>/Group/<dsFieldName>/<SortOrder>.

An example will be:

/Elx/DataSource/Section1/Group/City/Ascending

Note

There are four different types of sorting available. They are Ascending, Ascending-Lexicographic, Descending and Descending-Lexicographic. Ascending-Lexicographic and Descending-Lexicographic are known as Ascending(Simple) and Descending(Simple) in Repertoire Designer respectively.

Parameter

A parameter is "declared" when user enters a string like ${parameterName} within a DocX report. A parameter is "defined" when a value is supplied. A report may have multiple declarations and mixed with normal text. For example:

My name is ${first} ${last}.

There are 2 ways of defining parameters.

  1. Define Parameter Individually - Defining each parameter one by one in the DocX report. (It can be defined as: /Elx/Parameter/<ParameterName>/Value)

    For example:

    /Elx/Parameter/Text/${User##MyName}

  2. Load Properties File - All parameters declared are to be placed in a Properties file together with the desired elements defined. It can be defined as: /Elx/ParameterFile/<PropertiesFileName>.properties

    The parameters should follow the following format: <ParameterName>=Value For example:

    Password=${Password#password#MyPassword}
    Name=${User##MyName}
    PreferredChoice=${MyChoice#choice(Apple,Orange,Pear)#Pear}
    Date=${Date#date#2011-06-01}
    Integer=${Integer#integer#20}
    Number=${Number#number#25.6}

    The following, Figure 8.1, “Parameters in DocX Report”, is how a DocX report will look with the parameters declared and using a Properties file. When rendered, the outcome will be as seen in Figure 8.2, “Rendered DocX Report”. For more information about rendering a DocX report, refer to the section called “Render DocX Report” at the end of this chapter.

    Figure 8.1. Parameters in DocX Report

    Parameters in DocX Report

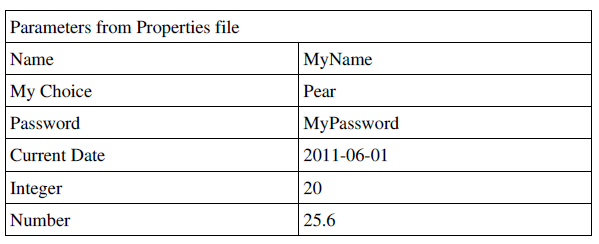

    Figure 8.2. Rendered DocX Report

    Rendered DocX Report

Parameter Element

Each parameter can have up to three elements: name, type and default value. These elements are separated by the character, #, which can be omitted when there are no subsequent elements. Here are some examples:

  • ${name} - This syntax is used to specify a parameter name.
  • ${name#type} - This syntax is used to specify the name and type of dynamic parameter.
  • ${name#type#value} - This is used to specify the name, type and value.
  • ${name##value} - This syntax is used to specify simply the name and value.

Substitutions in table names, headers and footers

Elixir Repertoire enables you to include substitutions in table names, headers and footers, to replace variables with field values.

Before adding substitutions, please define the datasource where the data comes from at the end of the DocX document. For example,

/Elx/DataSource/Section2/Name/MySamples/DocX/MyDatasource.ds

Support for substitutions in table names: For example, ${Section2:MyField} allows data from other datasources to be rendered as table names, which doesn't have to be within one section. When the datasource is within one section (where the substitution will be included), leave out the prefix and only use ${MyField}. When the datasource is from another section, you will get the data from the first record in the table.

Support for substitutions in headers and footers: Similar with above, you can render data fields and parameters into headers, using ${Section2:MyField}, ${S1:Field} or other code following the syntax. When the datasource is defined within one section, remove the prefix and only use ${MyField}. When the datasource is from another section, you will get values from first record of the referenced data table.

Scripts

Like the 2 ways of declaring parameters, scripts can either be declared individually or by loading a file, a script file.

  1. Define Scripts Individually. (Defined as: /Elx/Script/<Define scripts here>)

    For example:

    /Elx/Script/function sumFn(a,b){return a+b;}
      var script2=sumFn(2,4);

    To use the script in the report, enter ${=script2}.

  2. Load a Script File. (Defined as: /Elx/ScriptFile/<ScriptFileName>.js)

    An example of the content in a .js file is:

    importScript("ElixirSamples/Reports/Scripting/minusJS.js");
    function sumFn(a,b)
      {
        return a+b;
      }

    To use the script in the DocX report, enter the following:

    ${=sumFn(2,4)}

Aliases

Aliases are used to shorten substitutions in order to fit the available space better. Take the following line for example:

${=elxfn.dateDiff(new java.util.Date(107,0,1),
  new java.util.Date(),'d')}

The result is probably a few integers which will fit in a table cell. However, Microsoft Word will try to show the whole substitution ${=elxfn.dateDiff(new java.util.Date(107,0,1),new java.util.Date(),'d')} in the field, which will alter the layout. Therefore, for report neatness, we use substitution as an alias. (1 is used here, but any name is fine) Instead of a long string, we can use ${@1} instead.

Note

The alteration of layout is only during the designing of DocX report. When rendered, the tables will display according to the height and length of the text.

Hide Processing Instructions

Processing instructions can be temporarily disabled by 2 ways.

  1. Have an additional slash. For example:

    /Elx//Datasource/Section1/Name/FruitSales.ds

  2. Use Hide. For example:

    /Elx/Hide/Datasource/Section1/Name/FruitSales.ds

Formatting

Very often, substituted values need to be formatted. For example, a user wishes to show only the hours and minutes of a date, or show thousand separator and two decimal places for calculation results. This is handled by prefixing the substitution with a format string, which always begins with the character, #. This follows the standard Java formatting syntax. The end of the string is marked with the | character.

Table 8.2. Formatting Syntax

 Syntax
Data Field

${%,.<numOfDecimalPlaces>f|<DataFieldName>}

An example will be:

${%,.2f|2000}

Script

${%,.<numOfDecimalPlaces>f|=<JavascriptHere>}

For example:

${%,.2f|=var a=2;var b =4;totalSum=a+b;}

Alias

/Elx/@/<AliasName>/%,.<numOfDecimalPlaces>f|=<JavascriptHere>

For example:

/Elx/@/1/%,.2f|=var a=2;var b =4;totalSum=a+b;

Note

As Javascript has no integer type, always use %f (floating point) when referring to numbers returned from Javascript. If you refer to %d (decimal integer), an error will occur. To show a floating number as an integer, use %.0. To show a numeric figure such as 12.34, use %.2, which indicates two decimal places.

Render DocX Report

For DocX files in the repository, on right-clicking on a particular DocX file as seen in Figure 8.3, “Render DocX” and select Render.... It can be rendered directly into DocX format with data from the datasource specified in the file.

Figure 8.3. Render DocX

Render DocX

Note

DocX rendering works in Repertoire Designer across all compatible operating systems and not just Microsoft Windows.
