Elixir Data Designer provides a Cube component which allows you to generate data results of the your choice by defining multi-level dimensions and multiple measures using the pre-defined functions such as sum, average, count, max, and min for example.
The Cube processor is selected from the menu bar of the Designer window and then placed in the designer window workspace.
The properties of the Cube processor are as follows:.
Properties
On opening the properties of a Cube processor, the dialog appears as shown in Figure 4.47, “Cube Wizard”.
The Cube Hierarchies screen contains the Name and Elements column where the names of each hierarchy and the corresponding hierarchy elements will be listed.
There are three buttons on the screen namely Add, Edit and Remove that can be used to add, edit or delete a hierarchy.

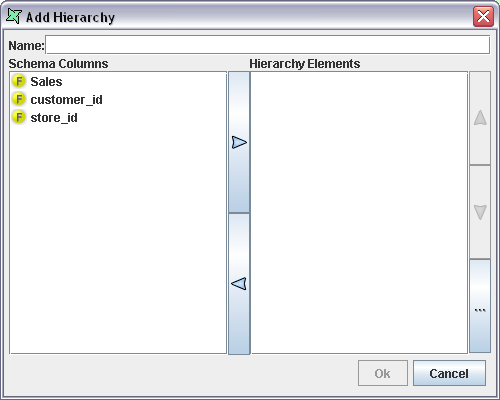

Click Add to display the dialog, as shown in Figure 4.48, “Add Hierarchy”, where the hierarchy elements can be
added and a name can be assigned to the hierarchy. A hierarchy indicates
a strict relationship between the hierarchy elements - each child can only belong
to a single parent. For example, Country/State/City
is a valid hierarchy because a City cannot be in more than one State,
and a State cannot belong to more than one Country.
Year/Month
is not a valid hierarchy, because "January"
can occur in many years.

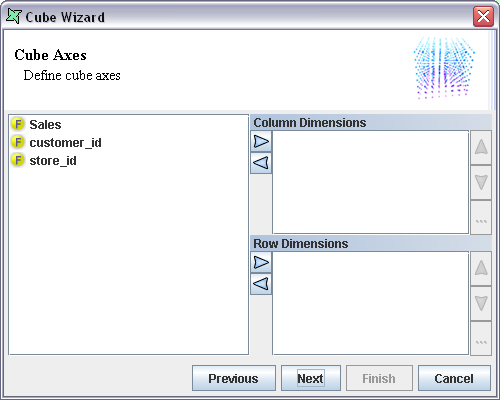

Click Next, to display the Cube Wizard as
shown in Figure 4.49, “Cube Axes Screen”. In this screen, you can add the
Column dimensions and Row dimensions. The elements
that are added in the Column dimension windows will be
displayed as the column fields in the output table. The
elements that are added in the Row dimensions window will be
displayed as the row fields in the output table. The hierarchy
column added in the first screen can be made use of in this
screen as a row or column field. Use of a hierarchy is more efficient, as the system
relies on the strict definition of each child only having one parent. However
an incorrect use of hierarchy, as illustrated by Year/Month
above will usually
yield incorrect results.

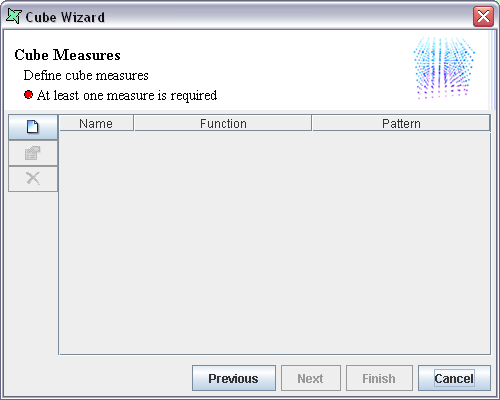

Click Next to display the Cube Wizard as shown
in Figure 4.50, “Cube Measures Screen”. There are two
columns namely Name
and Function
.
In this screen, the Pre-defined functions and the name of the fields using these
functions will be listed. There are three buttons namely Add,
Edit and Remove to add, edit or
remove the cube measure columns.
Click Add. The dialog box pops
up as shown in Figure 4.51, “Add Measure Dialog”. In this dialog box, the Field name,
Function and Pattern can be selected. Each measure applies a function to a particular
field, for example Average(Salary)
. The name of the measure is
given by the values of the dimensions that form the output column. For example,
Male/Average(Salary)
and Female/Average(Salary)
would be the column names for a Cube with a
Gender column dimension. If there are two dimensions, e.g. Country/Gender
, then
you would get column names like Singapore/Male/Average(Salary)
.
Sometimes you might want to choose your own column names. This is where the
Pattern
field is useful. By default, if you leave the Pattern
field blank, you will get
column names as described above. If you enter a Pattern description, it will be used
to generate the column names. There are a number of substitution parameters available.
Assuming the default column name is US/Oregon/Married/Count(employeeid)
, here are some
samples of the available substitutions:
[blank] -> US/Oregon/Married/Count(employeeid) // backwards compatible
${*} -> US/Oregon/Married/Count(employeeid) // all, as before
${0} -> US // extract using index
-${1}-${0}-${2}- -> -Oregon-US-Married- // another index e.g.
${hierarchy} -> US/Oregon/Married // without the measure
${measure} -> Count(employeeid) // without the hierarchy
${hierarchy}/${measure} -> US/Oregon/Married/Count(employeeid) // all
${field} -> employeeid // just the field name
${fn} -> Count // just the measure fn
${fn} of ${field} -> Count of employeeid // varying formatting
It is important that any pattern you define should result in a unique column name for each column in the cube. This usually means that you should include the elements of the hierarchy and the measure somewhere in your pattern. Failure to ensure unique column names may prevent subsequent processor steps from accessing data from those fields with duplicate names.
The next wizard page provides a few options to tune the cube process and output:
Collapse Empty Rows
This option will remove any rows from the cube that have no records
contributing to them. For example if Singapore/Male
has no records, then
only Singapore/Female
would be shown. If empty records are not collapsed
the output will be a permutation of non-hierarchical row dimensions. Hierarchies
by definition (see strict hierarchies above) do not have empty rows.
Collapse Empty Columns This option will remove any columns from the cube that have no records contributing to them. Note that use of this option will alter the output schema - the columns indicate the fields each record will contain. Care should be taken when using this option as errors will result if subsequent steps depend on the presence of columns that are removed. The only benefit in removing empty columns is to improve presentation. For example, users of Elixir Report Cube Table can make use of this option to better utilize the available width of the report.
Show Row Grand Totals When you output records to subsequent processors, or Result, an additional row is inserted to represent the grand totals of all the rows in the same column. The following is an example:
Show Column Grand Totals When you output records to subsequent processors, or Result, an additional row is inserted to represent the grand totals of all the columns in the same row. Here is an example:

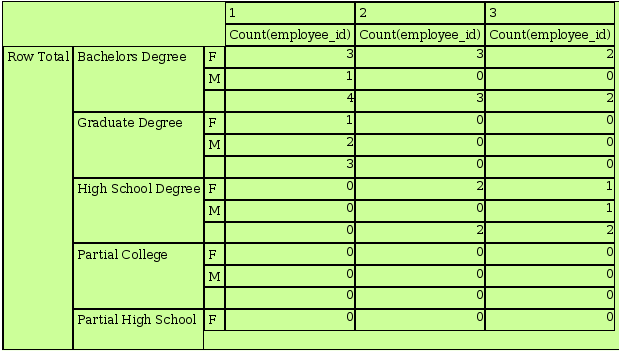

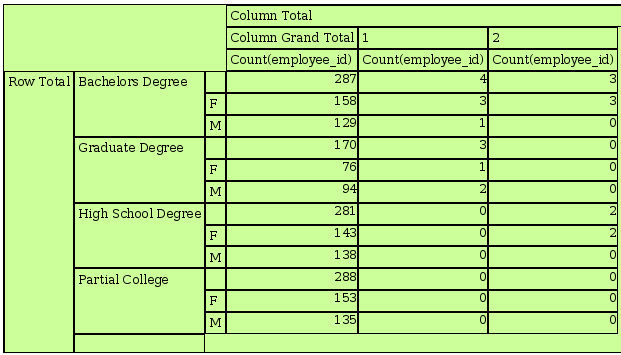

Row Totals After Details Similar to Show Row Grand Totals, this option sums the total, but only after the row(s) of each group of Measure(s), as shown in Figure 4.54, “Cube - Row Totals After Details”.

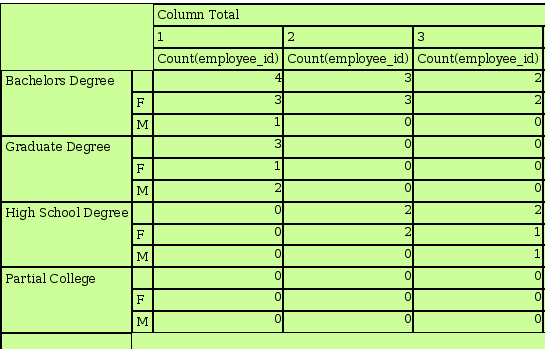

Column Totals After Details This options works the same way as Row Totals After Details. The only difference is that this option shows the total before each group of Measure(s), as shown in Figure 4.55, “Cube - Column Totals After Details”.
Click Next in the Cube Wizard to display the Infer
Schema
screen. Click Infer Schema to infer the
schema. You should infer the schema after any changes to the
dimensions or measures, including changing the measure patterns, since
all these affect the column names.
In order to display Row Totals After Details and
Column Totals After Details to display when generating
the Cube, Show Totals
must be selected, as shown in
Figure 4.56, “Cube Axes - Edit Level”. As for Show Row Grand Totals
and Show Column Grand Totals, it is not necessary to check
the option Show Totals
.

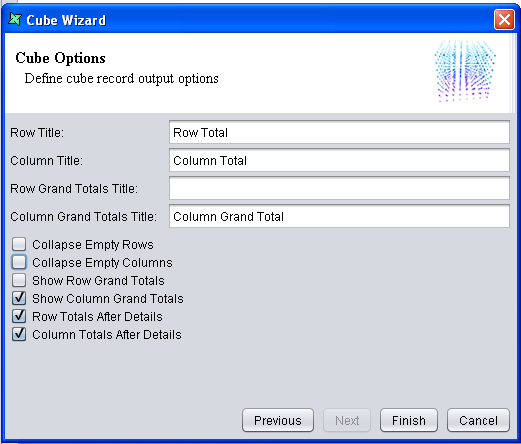

In order to display Row Totals After Details, Column Totals After Details, Show Row Grand Totals and Show Column Grand Totals when generating the Cube, corresponding check boxes must be selected and titles must be entered, as shown in Figure 4.57, “Cube Options”
The averages of frozen and store for the stores in the different states of Mexico have to be compared.
Add the JDBC data source Stores.
Add a Composite DataSource named Cube
and drag the Stores data source over the diagram.
Select a filter and place it in the designer. Next add a cube and connect the Stores to the filter, then to the cube and finally to Result. The diagram appears as shown in Figure 4.58, “Sample Cube Flow”.
Open the filter properties and configure it to keep
Country equals Mexico
.
In the Cube Properties, go to the Cube Axes page,
select Country
as the cube column and State
as the row.
On the Cube Measures page, add a measure to Average the field frozen
and add another measure to Average the store field.

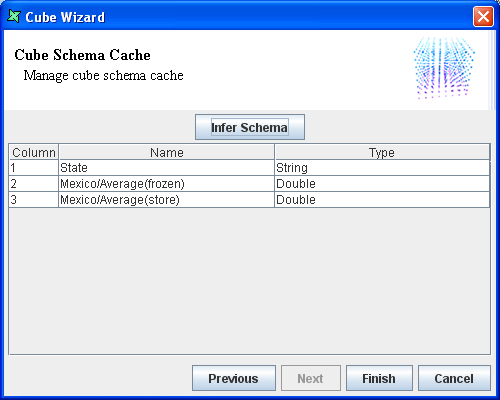

Click Next and infer the schema. The screen appears as shown in Figure 4.59, “Infer Schema Screen”. Click Finish.

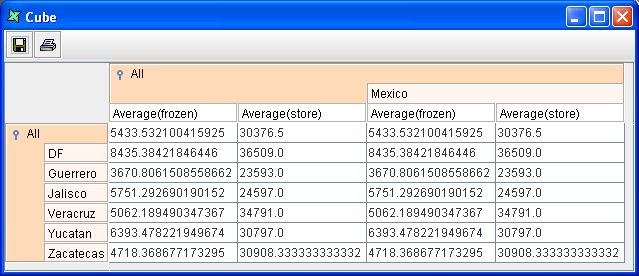

From the Cube popup menu, choose View Cube. The output appears as shown in Figure 4.60, “Cube Result”. The averages of frozen and store for different states in Mexico are displayed.
