The different ways of using a Reference DataSource are as follows:
In this illustration, an Excel DataSource has been added in which a parameter has been specified for the range. The values are expected to be entered during the loading of the Excel file.
Use the following process to add a Reference DataSource and use it to supply values automatically to the parameterized Excel data source.
The sample file Empdata.xls
consists of employee details in

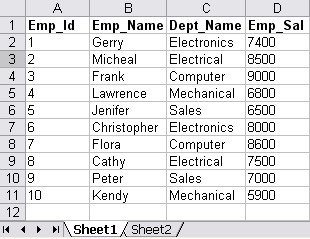

two worksheets as shown in Figure 9.3, “Empdata.xls”.
Before adding an Excel DataSource, the ranges must be
defined in the Excel file. Open the Empdata.xls
file with
Microsoft Excel and select Name -> Define under the Insert menu. The
Define Name dialog box pops up.
Enter the name as Emp1_All
and enter the range as follows
in the Refers to
text box. Click Add.
=Sheet1!A$1:D$11
Enter the name as Emp2_All
and the range as follows
in the Refers to
text box. Click Add.
=Sheet2!A$1:D$6
Enter name as Emp_All
and the range as follows in the
Refers to
text box. Click Add.
=Sheet1:Sheet2!A$1:D$11

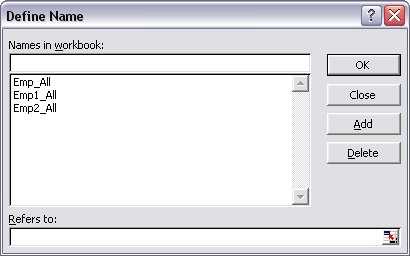

After adding the columns, the dialog window appears as shown in Figure 9.4, “Define Name”. Click OK.
Save the Empdata.xls
file.
Open Elixir Repertoire and create a new Excel DataSource
called Emp-Range
. Enter the Empdata
URL (file path) in text field provided,
or click the browse button to the right of the text field,
to select the Empdata.xls
file from the Open dialog.
Enter the Range as ${Range}
and select the First Row Header
option.

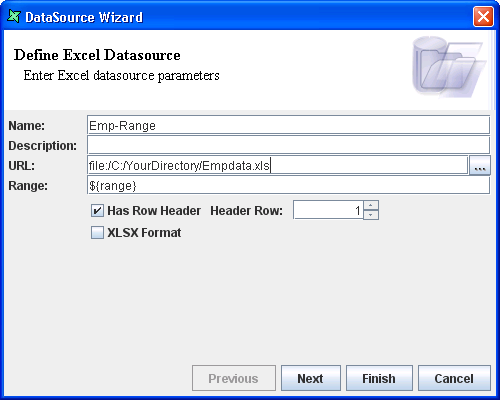

After setting the properties, the DataSource
Wizard appears as shown in Figure 9.5, “Excel DataSource Sample”.
Click Next. In the screen that appears
click Infer Schema.
Enter any range specified above in the Dynamic
Parameters dialog box that appears and click Finish. The schema will be inferred.
Change the data type of Emp_Id
and Emp_Sal
to Integer
. Finally, click Finish.
Click Finish to add the Emp-Range.ds
file
to the repository.
Choose Add -> DataSource again and
select Reference DataSource
. Click Next.
In the "Reference a DataSource" screen that appears
enter the Name as Ref-Ex1
and select
Emp-Range
from the DataSource combo box.
Enter Emp1_All

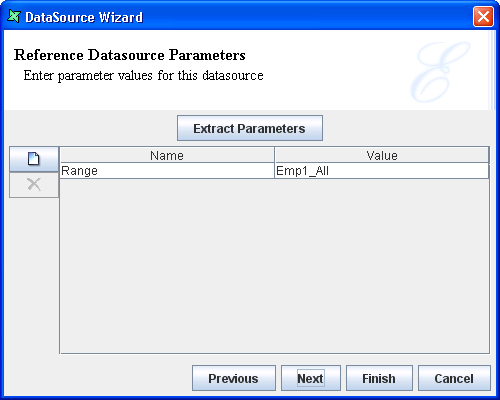

as the value for Range. After entering
the values, the screen appears as shown in Figure 9.6, “Reference a DataSource”. Click Finish, to add Ref-Ex1.ds
to the repository.
Similarly, add another Reference Datasource called
Ref-Ex2
which also references
Emp-Range
.
Enter Emp2_All
in the Range text field.
Click Finish, to add Ref-Ex2.ds
to the repository.
Finally, add a Reference DataSource called
Ref-Ex3
as above, but enter
Emp_All
in the Range text field.
Now we have three sample Reference DataSources. Open the Ref-Ex1
data source. In
the data window, click the Load Data menu. The output
is displayed as shown in Figure 9.7, “Sample Output”. It is seen that the
data from the first sheet of the Excel file is
displayed.
Open Ref-Ex2
and load the data to view the data
from the second sheet of the Excel file.
Repeat the same action on Ref-Ex3
to view the data
from both the worksheets of the Excel file.
Thus all the three Reference DataSources refer to the same Excel file, but parameterize it in different ways. This means there is only one place to define common information, such as the Excel file location, making the solution easier to maintain.
In this example we will work with a text file containing employee details and filter the records with a Composite wrapped with a Reference Datasource.
Add a new Text DataSource called Employee
and set the
URL to reference the sample Empinfo.txt
file. Select
the First line is header
option.
Select the Access type as Separator Character. Click
Next.
In the screen that appears, enter the Qualifier as "
.
Select Semicolon as the Separator. Click Infer Schema
The fields of the text data source
are inferred. Click Finish to add the text
data source to the repository.
Now add a Composite DataSource called
Compo
. Drag and drop the
Employee.ds
file from the Repository
over the Composite diagram. Add a Filter processor to the diagram
and connect it to the Employee datasource.
Open the Filter properties and select the Filter#1
tab.
In the row corresponding
to the Emp_Sal
field, select the Less Than option from the
combo box of the When
column. Enter the condition as ${Salary}
.
The screen appears as shown in Figure 9.8, “Filter Condition”. Click
Finish.
Connect the output of the Filter processor to the input of the Result.
Now add a Reference DataSource named
Ref-Com1
. Select the Compo
data source
from the DataSource combo box. Enter 7000
as the value for the
Salary

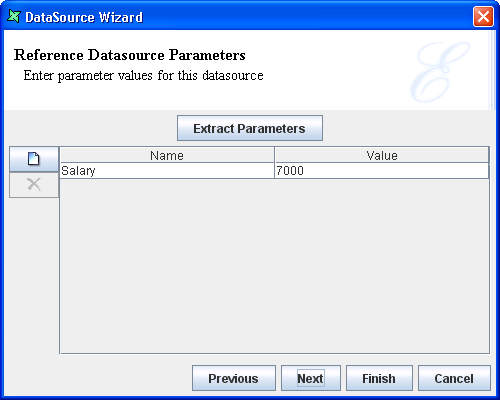

parameter. After entering the
values, the screen appears as shown in Figure 9.9, “Sample Reference”.
Click Finish, to add Ref-Com1.ds
to
the repository.
Repeat the process to create
Ref-Com2
and enter 8000
as the Salary
value.
Open Ref-Com1.ds
and notice that only the records of
employees whose salary is less than 7000
are
displayed.
Similarly, open Ref-Com2.ds
and check that only the
records of employees whose salary is less than 8000
are
displayed.
Both the Reference DataSources refer to the same Composite DataSource, but parameterize it in different ways.
