Launching Repertoire Designer

Launching Repertoire Designer
Prev	Chapter 1. About Elixir Repertoire	Next

Note

Ambience should also be started and running before starting Repertoire. To start Ambience, refer to the Ambience Installation Guide.

To launch Repertoire Designer:

Open a command prompt. Navigate to the ElixirAmbience/bin directory. Enter one of the following commands:

run-designer.bat

if you are using Windows.

sh run-designer.sh

if you are using Linux.

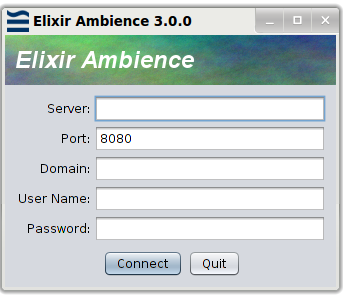

The Repertoire Designer login screen is displayed as follows:

Figure 1.1. Repertoire Login Screen

The login details to be entered are as follows:

Server: The server on which Repertoire is running. By default, it is localhost.
Port: The port on which Ambience is running. By default, it is 8080.
Domain: The domain to login. The default domain is eno.
Username: The username to login. The default username is admin.
Password: The password to login. The default password is sa.

Launching Repertoire Designer with a Specific Report, DataSource or Dashboard

You can launch Repertoire Designer and open a specific file at the same time. This is applicable to Report(.rml), DataSource(.ds) and Dashboard(.pml) files. To do this, you will need to launch Repertoire Designer using a command prompt, as mentioned in the section called “Launching Repertoire Designer”. However, instead of the commands mentioned previously, enter the following instead:

run-designer.bat -maxWorkspace
			    -initialFile repository:/<PathOfFile>

if you are using Windows.

sh run-designer.sh -maxWorkspace
				    -initialFile repository:/<PathOfFile>

if you are using Linux.

Here are examples for launching Repertoire Designer with a Report:

run-designer.bat -maxWorkspace
-initialFile
repository:/ElixirSamples/Report/Components/Checkbox.rml

if you are using Windows.

sh run-designer.sh -maxWorkspace
 -initialFile
 repository:/ElixirSamples/Report/Components/Checkbox.rml

if you are using Linux.
