This chapter introduces the report elements and the various
properties they provide. Properties hold strings representing different
kinds of information, such as colours and fonts. The properties of the
elements are listed in the Properties
table of the Layout
tab. Some of
the most commonly accessed properties are also available on a popup
Properties dialog that you can access by double-clicking a report element or by choosing
Properties...
from its popup menu.
Colours in Elixir Report Designer are specified as an RGB string,
in the form rgb(R,G,B,A)
or by name. The R, G and B values are numbers in the range
0-255 which is the amount of red, green and blue in the colour and A is
an alpha value, or transparency control, which is also a number in the
range 0 (transparent) to 255 (solid). The alpha value is optional and
defaults to solid, so that rgb(100,100,100)
is the same as rgb(100,100,100,255)
.
The text rgb(0,0,0)
corresponds to the colour black and rgb(255,255,255)
corresponds to white. While this format gives you complete flexibility
in terms of colour choice, it can be hard to remember the appropriate RGB values.
As an alternative, you can enter the names of the colours, such as Black,
White, even LightSalmon and SteelBlue, if you prefer. Elixir Report Designer supports the
standard colour names originally defined by the X Window System and now used in SVG,

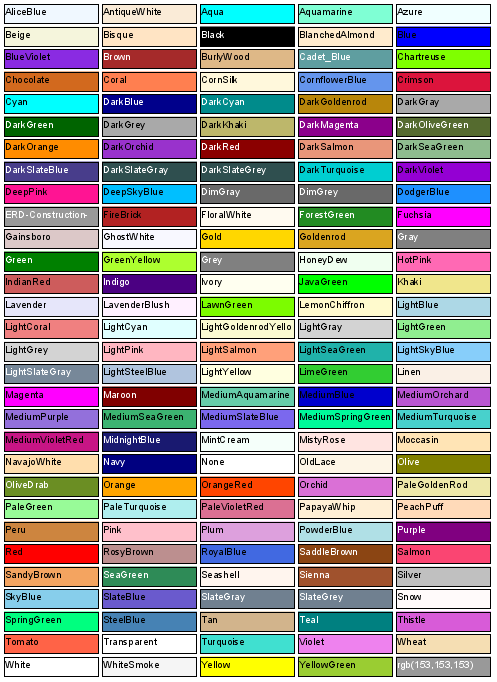

HTML and CSS. The table of pre-defined colour names is shown in
Figure 4.2, “Named Colours”

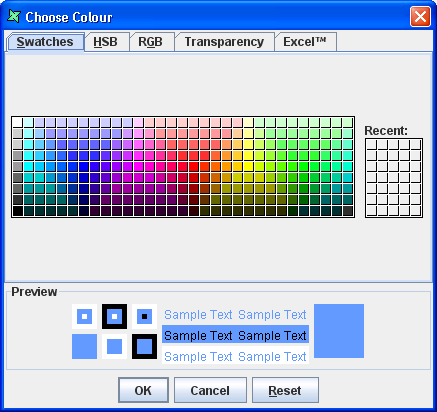

A third option is to click the button on the right of each colour field
to select the color from a Choose Colour
dialog as shown in Figure 4.1, “Choose Colour”. This dialog
also allows the colour to be made partially transparent by adjusting the
alpha value on the Transparency tab.
Figure 4.3, “Choose Colour (Excel Compatible)” shows the colours that are compatible with Excel since some colours
in the Swatches
tab does not appear correctly when rendered in Excel.
Many elements share some common properties like background colour, border lines, etc. To avoid repetition, the common properties are described here:
The background colour is used to fill the background of a shape. It may be partially or completely transparent, in which case colours will show through from objects behind.
The Bottom, Left, Right and Top border lines can be individually controlled to create interesting effects as shown in Figure 4.4, “Borders and Backgrounds”.
Borders are controlled through a number of inter-related properties,
colour, width, radius and lines. The border style governs the
use of these properties. Borders are rectangular, though they may have
curved corners set using the radius property. The styles - Groove
, Ridge
,
Inset
and Outset
do not support curved corners. Double borders are created by
dividing the width into three and painting the inside and outside thirds.
This means the border width must be at least three pixels (60 twips) and
ideally a multiple of three for the Double effect to be visible. Groove
,
Ridge
, Inset
and Outset
vary the darkness of the border colour to simulate
depth. The darkness of Black cannot be varied, so these styles will not be visible
with a black border. Finally, the Wave
style uses the border width to determine
the amplitude of oscillation of the line, and hence needs a width greater than one
to show any effect.
By default, a field will use the space exactly as drawn on
the designer. When rendering longer text, it can result in the
some characters being lost. To avoid this, enable the Can Grow
option in the
Properties
table. When this property is enabled, the report element
grows in height so that all the data it contains is printed
properly. Can Grow
also applies to details, headers and footers.
The container will grow to the height necessary to encompass all
of its children, retaining any required padding. Note that page headers
and page footers can neither grow nor shrink.
Can Shrink
provides the opposite facility to Can Grow
.
When there is no data to be displayed in the field, then
it is unnecessary to allocate space for that component. By using
Can Shrink
, you allow a component to reduce height to accommodate less
(or no) data. Can Shrink
also applies to details, headers and footers.
The container will shrink to the smallest height to encompass all
of its children, retaining any required padding. Note that page headers
and page footers can neither grow nor shrink.
The Data property allows you to select the source of data to fill a Field. This property is connected to a dialog which allows you to choose from DataSource Fields, Operations, Scripts, URLs or Literal values to supply the information to show. The exact choices available vary with the kind of control.
When a value is specified for this property, the first line of the field will be indented based on the specified value and the unit of measurement. If the value given is negative, then the first line will remain flush left and subsequent lines will be indented by the specified value.
The Font
properties allow you to change the font name, size,
colour and the style of text. While fonts can be set explicitly
on individual elements, it is a good idea to define styles for
fonts, e.g. TitleFont, FooterFont etc. and then reference the
styles inside the report elements. This allows changes to values to
be made by simply altering a style rather than manually editing
every single element.
The Keep Together
property provided by containers ensures
that wherever possible, the contents of the container will be kept together
on the same page of the report. When this property is enabled,
the data is printed on one page instead of splitting it across
two pages i.e. if it cannot fit in the remaining space on one page, it
will advance to the next page and render there. When
this option is turned off, it prints as much data as possible in
the first page before advancing to the next page.
This property applies only to bands (details, headers and footers).
If set to true, it will ensure that the band remains
on the same page as the following band. This is useful in
cases where you want the header and first detail to
always be together - you do not want the header at the bottom
of a page and the detail on the next page. If you enable Keep With
Next
on the header, if there is no
room on the page for the subsequent detail, it will push both the
header and detail onto the top of the next page.
The Padding
properties define the space between the element
border and the element content. Top, right, bottom, and left padding values
can be set individually. Negative values are not allowed.
This property determines the position of the element in the report layout.
Fill: If the Fill
option is
selected, then the element resizes itself to fill the whole container
in which it is placed. The Left
, Right
, Height
and Width
attributes can be adjusted manually here to give precise positioning which
might not be achievable with a mouse.
In addition to the above properties, components which contain text,
such as Data Field
, Label
and Data Grid
also support Text Align and Vertical
Align.
Text Align: The Text Align field values are Left, Right, Center and Justify. The text that is displayed in the field is aligned horizontally based on the value selected from the combo box.
Vertical Align: The Vertical Align field values are Top, Center and Bottom. The text that is displayed in the field is aligned vertically based on the value selected from the combo box.
In the Image element, there is a Horizontal Align
property.
Similar to text align, the image is aligned based on the options
selected from the combo box. Unlike text alignment, horizontal
alignment does not support justified mode.
Lock Handles: When this option is checked, it will lock the element in position and any resizing is impossible. When the place holder of the element is grey in colour instead of green, it means that the particular element is locked.
The Render If
, On Render Begin
and On Render End
fields can hold
JavaScript files which control the rendering of the element. By clicking the
button in the fields, a larger, editor with syntax colouring is available.
For more information on working with scripts,
refer to Chapter 6, Scripting with JavaScript.
The existing styles in the report template are listed in the combo box. You can choose the required style for the element from the combo box.
There are three URL properties which are available for Chart, Data Field,
Grid, Image and Label elements. The URL
property holds a URL value
(e.g. http://www.elixirtech.com) that will be used as a hyperlink jump
when the report element is clicked in render types that support linking (HTML
and PDF).
The URL Description
property provides a description which may be
shown as a tool tip, if the viewer supports it.
URL Target
allows the destination of the URL
contents to be set. This is primarily for use in web browsers, so you can
force the linked document to show in a separate window or frame if you choose.
The value of URL Target (if specified) will become the target attribute of the
HTML anchor (<a> element). Here is the list of possible available URL targets :
Table 4.1. URL Targets
Attribute | Value |
---|---|
_blank | The target URL will open in a new window. |
_self | The target URL will open in the same frame as it was clicked. |
_parent | The target URL will open in the parent frame set. |
_top | The target URL will open in the full body of the window. |
