This section describes adding an Excel DataSource with a variety of alternative ranges.

Adding Data in a Single Worksheet

Start with an Excel file EmpInfo.xls that consists of Emp_Id, Emp_Name, Dept_Name and Emp_Sal as shown in Figure 5.3, “EmpInfo.xls”.

Figure 5.3. EmpInfo.xls

The following procedure defines an Excel DataSource containing all the Employee details:

Before adding an Excel DataSource, the range must be defined in the Excel file.
Open the EmpInfo.xls file.
Select the Name -> Define under the Insert menu. The Define Name dialog box pops up.
Enter name as Employee and enter the range as follows, in the Refers to text box.
```
=Sheet1!$A$1:$D$11
```

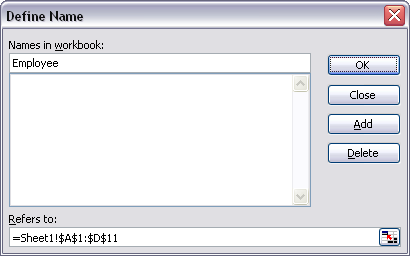

Here, $1 corresponds to the first cell in the file and there are a total of ll records in this Excel file including the header. $11 corresponds to the last cell containing the final record. The Define Name dialog box appears as shown in Figure 5.4, “Define Name”. Click OK in the Define Name dialog box. Save the Excel file.
Figure 5.4. Define Name
Launch Elixir Repertoire.
Choose a filesystem or folder and use the popup menu to select Add -> DataSource.
The DataSource Wizard appears. Select Excel DataSource and click Next.
The Define Excel DataSource screen appears. Enter the name as Excel-1.
Enter the URL for EmpInfo.xls in the text box provided. Alternatively, by clicking the button on the right of the text field select the EmpInfo.xls file from the File Open dialog.
Enter Employee in the Range field.
Select the First Row Header check box and click Next.
The screen appears as shown in Figure 5.5, “Completed DataSource Wizard”. Click Infer Schema. Change the Data Type of Emp_Id and Emp_Sal from Double to Integer
Figure 5.5. Completed DataSource Wizard
Click Finish in the DataSource Wizard.
The Excel Data Source is added to the repository. Click the Load Data menu.
The Excel file is loaded displaying the employee details present in the Excel sheet as shown in Figure 5.6, “Result”.
Figure 5.6. Result

Adding Data in Multiple Worksheets

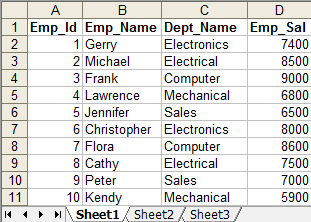

This time we will work with the file EmpDetail.xls. This consists of employee details in three worksheets as shown in Figure 5.7, “EmpDetail.xls”.

Figure 5.7. EmpDetail.xls

To get the values across all the sheets:

Before adding an Excel DataSource, the range must be defined in the Excel file.
Open Empdetail.xls file.
Select the Name -> Define under the Insert menu. The Define Name dialog box pops up.
Enter name as EmpSheets and enter range as follows, in the Refers to text box:
```
=Sheet1:Sheet3!$A$1:$D$11
```
The above syntax includes the cells in sheet1, sheet3 and all the sheets between them. After setting the values, the Define Name dialog window appears as shown in Figure 5.8, “Define Name”. Click OK in the Define Name dialog box and save the Excel file.
Figure 5.8. Define Name
Launch Elixir Data Designer.
Choose a filesystem or folder and use the popup menu to select Add -> DataSource.
The DataSource Wizard appears. Select Excel DataSource and click Next.
The Define Excel DataSource screen appears. Enter the name as Excel-2.
Enter the URL for EmpDetail.xls in the text box provided. Alternatively, by clicking the browse button to the right of the text field, select the EmpDetail.xls file from the File Open dialog.
Enter EmpSheets in the Range field.
Select the First Row Header check box and click Next.

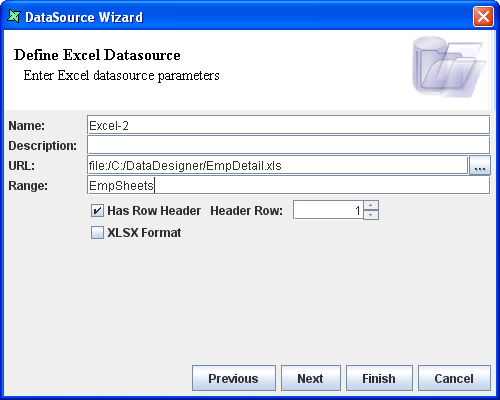

Click Infer Schema as shown in Figure 5.9, “Completed DataSource Wizard”. Change the Data Type of Emp_Id and Emp_Sal from Double to Integer.
Figure 5.9. Completed DataSource Wizard
Click Finish in the DataSource Wizard.
The Excel DataSource is added to the repository. Double click the Excel-2.ds data source. Click the Load Data menu.

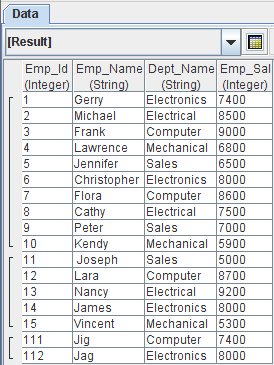

The Excel file is loaded displaying the employee details present in all the Excel sheets as shown in Figure 5.10, “Result”.
Figure 5.10. Result

Passing Dynamic Parameters

To control the behavior of Elixir Data Designer dynamically, dynamic parameters are used. The parameters are specified in place of a value or values while setting the properties of a datasource or Composite element, and the value is assigned during the generation process. The generation process may prompt for parameter entry.

Parameters are defined as name-value pairs, where the name must be unique in the scope of the parameter. Refer to Appendix A, Dynamic Parameters for further information.

If we need a different range of data to be loaded each time, then changing the ranges values in the DataSource Wizard will be a time consuming process. Dynamic parameters can be specified for the Range in the DataSource Wizard and the values are obtained when the DataSource is used.

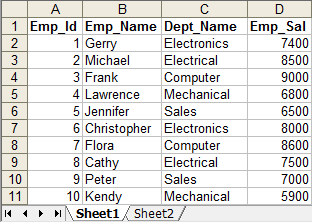

The file EmpDet.xls consists of employee details in two worksheets as shown in Figure 5.11, “EmpDet.xls”.

If you want to fetch the values in all the sheets of the Excel file using different range values, use the following process:

Figure 5.11. EmpDet.xls

Before adding an Excel DataSource, the ranges must be defined in the Excel file.
Open the EmpDet.xls file.
Select Name -> Define under the Insert menu. The Define Name dialog box pops up.
Enter name as Emp1_Small and enter the range as follows in the Refers to text box. Then click Add.
```
=Sheet1!$A$1:$D$6
```
Enter the name as Emp1_All and the range as follows in the Refers to text box and click Add.
```
=Sheet1!A$1:D$11
```
Enter the name as Emp2 and the range as follows in the Refers to text box and click Add.
```
=Sheet2!$A$1:$D$3
```

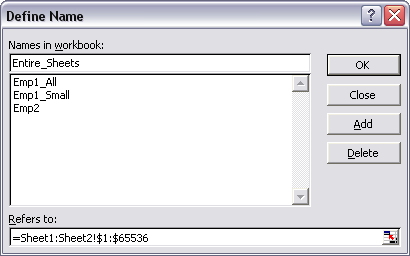

Enter the name as Entire_Sheets and the range as follows in the Refers to text box and click Add. After adding the columns, the dialog window appears as shown in Figure 5.12, “Define Name”. Click Ok in the Define Name dialog window.
Figure 5.12. Define Name
```
=Sheet1:Sheet2!A$1:D$11
```
Save the EmpDet.xls file.
Launch Elixir Repertoire.
Using the filesystem or folder popup menu, select Add -> DataSource.
The DataSource Wizard appears. Select Excel DataSource and click Next.
The Define Excel DataSource screen appears. Enter the name as Excel-3.
Enter the path of the EmpDet.xls file in the field provided. Alternatively, by clicking the browse button on the right of the text field, select the EmpDet.xls file from the Open dialog.
Enter ${Range} in the Range field.
Select the First Row Header check box and click Next.
In the screen that appears as shown in Figure 5.13, “Completed DataSource Wizard”, click Infer Schema. Enter any range specified above in the Dynamic Parameters dialog box that appears and click Finish. The schema will be inferred. Change the Data Type of Emp_Id and Emp_Sal to Integer. Finally, click Finish.
Figure 5.13. Completed DataSource Wizard
Click Finish in the DataSource Wizard.
The Excel data source is added to the repository. Double click Excel-3.ds. Click the Load Data menu.

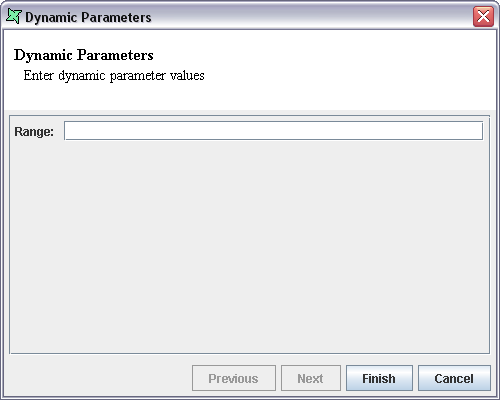

The Dynamic parameter dialog box pops up as shown in Figure 5.14, “Dynamic Parameters”. Enter one of the range names previously defined (Emp1_Small, Emp1_All etc.). Click Finish.
Figure 5.14. Dynamic Parameters
The Emp1_Small range is used to fetch only the selected part of the data from sheet1 of the Excel file as shown in Figure 5.15, “Emp1_Small Result”. The Emp1_All range is used to fetch all the data in Excel file sheet1 as shown in Figure 5.16, “Emp1_All Result”. Similarly, the Emp2 range is used to fetch only the selected part of the data from sheet2 of the Excel file. The Entire_Sheets range is used to fetch all the records from both the sheets.
Figure 5.15. Emp1_Small Result
Figure 5.16. Emp1_All Result
