Properties DataSource Wizard

The Properties DataSource Wizard appears as shown in Figure 8.1, “Properties DataSource Wizard”.

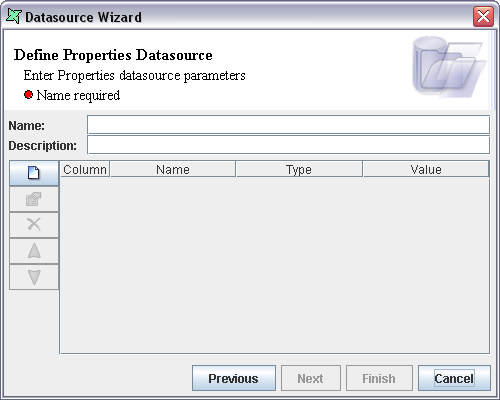

Figure 8.1. Properties DataSource Wizard

Properties DataSource Wizard

The name of the DataSource is entered in the Name text box. Any extra description that is used to describe the data source can be entered in the Description text box.

There are five buttons - Add Column, Edit Column, Move Up, Move Down and Remove Column.

Click Add Column to add a new column. The Add Column dialog pops up as shown in Figure 8.2, “Add Column”. Enter the column name, select the data type and enter the value. Click OK to add the column to the Wizard.

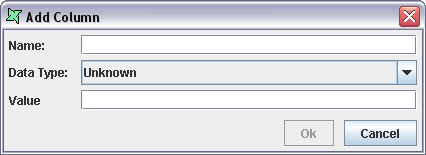

Figure 8.2. Add Column

Add Column

Use Edit Column, Move Up, Move Down and Remove Column to edit, reorder or delete columns respectively.
