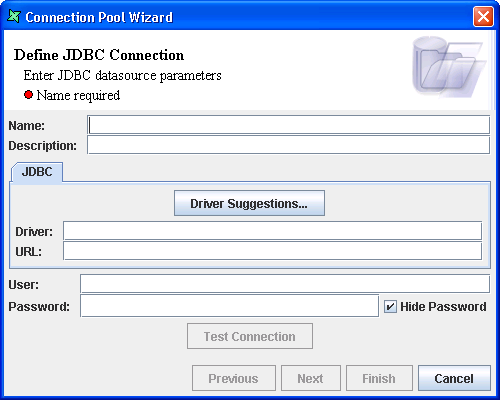

Connecting to a relational database can be time-consuming, especially across a network. The job of a connection pool is to maintain a set of connections ready for use. You can create a connection pool in the Repository by choosing Add > Connection Pool... from a folder or filesystem popup menu. A wizard will appear, as shown in Figure 3.10, “Connection Pool Wizard”. The Test Connection button will only be enabled when the driver is being specified and will allow the user to test whether the connection to the database is available. A window will pop-up to indicate if the connection has succeeded or failed.
The information required on the first page is exactly the same as that on the JDBC
wizard described above. If you are creating a pool for use on a server,
the warning "Driver class not found" means the class is not found on the local
classpath - the JDBC driver may already exist on the server. You can still proceed
despite the warning and you will need to verify the classpath (e.g. the
/Public/lib/ folder in the Repository Tree) contains the necessary driver for your
chosen database.
How do I find out the URL?: Some JDBC drivers choose to read extra properties from the end of the URL. For example, MySQL uses
jdbc:mysql://localhost/Data?useServerPrepStmts=true
to turn on server-side prepared statements. Other JDBC drivers choose to read a separate
collection of extra properties. These extra properties are supported by adding name=value
pairs to the table on this page. You will need to refer to the documentation that accompanies
your JDBC driver to determine the name=value pairs that are supported by the specific driver and
database versions that you have chosen.
Note
Dynamic substitutions, such as ${password}, are not available in
the Connection Pool as it may be shared by all users of the software
and there is no common context from which the dynamic parameters could be
obtained.
On the next page, you have the option to set any customized properties specifically for your JDBC driver, by setting the keys and values, as shown in Figure 3.11, “Connection Pool JDBC Properties”. For more information on working with Connection Pool custom properties, refer to the section called “Configuring JDBC Properties”.
The next page of the Connection Pool Wizard allows the characteristics of the pool to be controlled. The Connection Pool is built on c3p0
- Max. Idle Time (s)
The time in seconds that a Connection can remain pooled but unused before being discarded. Zero means idle connections never expire.
- Min. Pool Size
The minimum number of Connections the pool will maintain at any given time.
- Max. Pool Size
The maximum number of Connections the pool will maintain at any given time.
- Max. Statements
The size of the pool's global
PreparedStatementcache. IfMax Statementsis zero, statement caching will be enabled, but no global limit will be enforced.- Max. Connection Age (s)
The time to live, in seconds. A Connection older than
Max Connection Agewill be destroyed and purged from the pool. This differs fromMax Idle Timein that it refers to absolute age. Even a Connection which has not been much idle will be purged from the pool if it exceedsMax Connection Age. Zero means no maximum absolute age is enforced.- Acquire Increment
Determines how many connections at a time the pool will try to acquire when the existing connections in the pool are all in use.
- Acquire Retry Attempt
Defines how many times the pool will try to acquire a new Connection from the database before giving up. If this value is less than or equal to zero, the pool will keep trying to fetch a Connection indefinitely.
- Acquire Retry Delay (ms)
The time in milliseconds that the pool will wait between acquire attempts.
The final page of the Connection Pool Wizard allows the pool to be secured, by encrypting the file to provide protection for the JDBC password.
Right-clicking on the .pool file will list a few options, as shown in
Figure 3.12, “Right-click on Connection Pool”. One of them will be to create a JDBC datasource.
Only the first screen of the wizard will be different as it will use the
Connection Pool to connect, similar to Figure 3.13, “Datasource Wizard”. The rest of
the pages of the wizard will be the same as creating a JDBC Datasource using the
JDBC tab.
