Workflow Designer

The Workflow Designer page allows you to create and edit the processes of the workflow. You need to have the mod-workflows and mod-workflow-edit privileges to access and edit the workflow.

Once a workflow has been created, instances of that workflow can be created and executed via the Workflow Engine which is also part of the Workflow Module. The Workflow Engine accepts events via its REST interface. The events can fire transitions and execute ETL chainsets that change the state of the current workflow instance.

There are two types of process in the workflow, they are the State and Transition. The state process itself can be divided into four different types:

  • Start state
  • Stop state
  • Super state
  • History state
Process Icon Description
Transition Allows transits from one state to other or within a state (i.e., loopback).
States
Start A mandatory state that indicates the start of a workflow.
Stop A mandatory state that indicates the end of a workflow.
Super When used, allows the user to create nested states.
History Allows a state to be declared as a history state to remember the state on exit and resuming on re-entry.

The Workflow Designer page is divided into four parts:

Task Bar

The Task Bar is located at the top of the page.

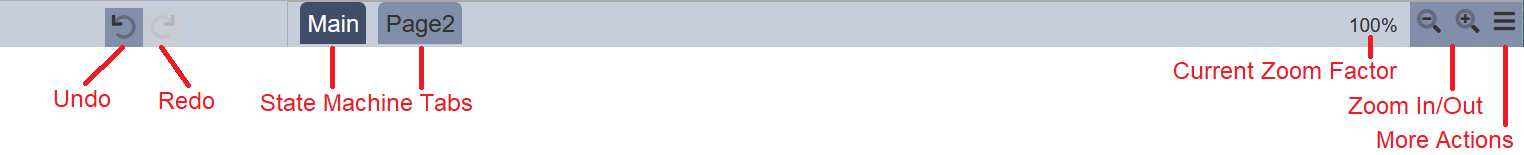

It consists of two icons on the left of the page, the state machine tabs and another three icons of the right of the page. There is no save button or icon in the page as the workflow is auto-saved.

Undo/Redo

The “Undo” icon and “Redo” icon allows you to undo and redo the last action done on the workflow. If there is no action to undo or redo, the respective icon will grey-out.

State Machine Tabs

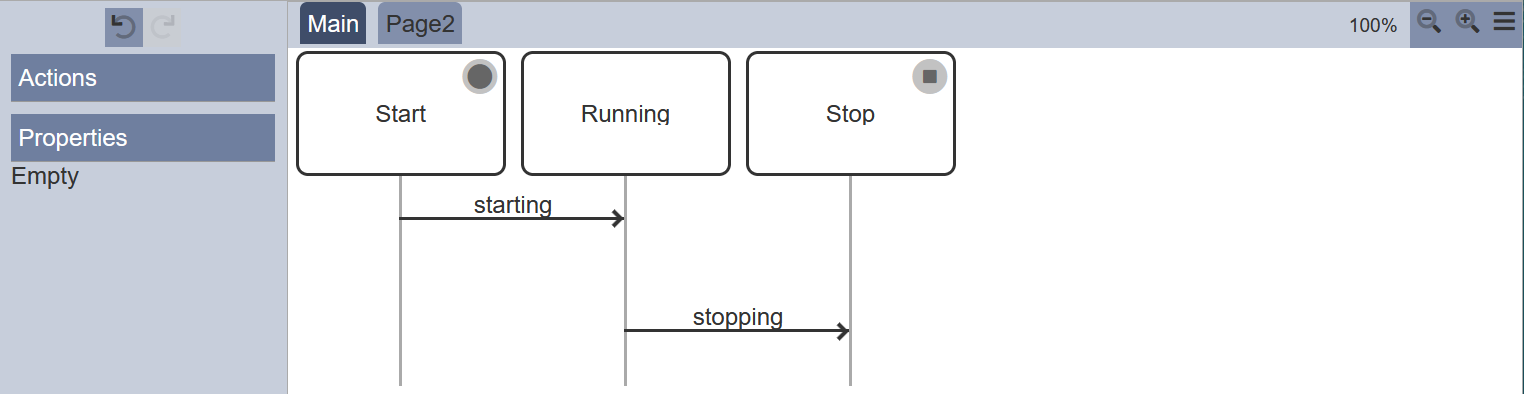

The state machine tabs allows you to switch between state machines in the workflow. The selected tab is highlighted in bold. To select the other tabs, simply click on the tab to switch to the desired tab.

Zoom Out/In

You can zoom out and in of the workflow diagram using the “Zoom Out”, “Zoom In” icons. The number before the icons indicates the current zoom percentage. The zoom range is from 25% to 150%, in steps of 25%. The default initial zoom factor is 100%. Once the minimum or maximum zoom is reached, the respective icon will grey-out.

More Actions

The “More Actions” icon allows you to access to other actions, such as:

Add

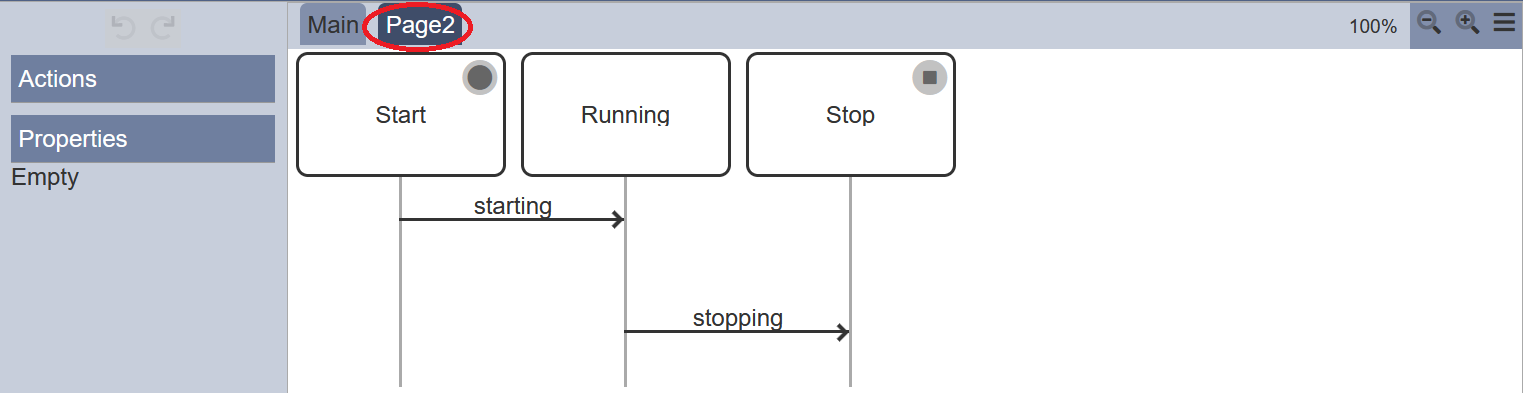

The “Add” action allows you to add a new state machine onto the Workflow. To add a new state machine into the workflow, click on the “More Actions” icon to display the list of actions available.

Select the “Add” action from the list and a “Add” dialog box will appear.

Key in an unique name for the new state machine in the “Name” field and select the desired initial zoom factor from the drop-down list for the “Initial Zoom” field. Click on the “OK” button to add the new state machine or click on the “Cancel” button to abort the action. If the name already exist, an error message will appear.

The newly added state machine will have the default states and transitions automatically added into the workflow.

Delete

The “Delete” action allows you to delete the selected state machine from the workflow. To do so, first select the state machine to be deleted. Click on the “More Actions” icon to display the list of actions available.

Select the “Delete” action from the list. The selected state machine will be deleted. You can undo the deletion by clicking on the icon at the upper left of the page and the deleted state machine will be added back into the Flow Panel.

If there is only one state machine in the workflow, the “Delete” action will not be available.

Edit

The “Edit” action allows you to change the name of the state machine and the initial zoom factor. To do so, click on the “More Actions” icon to display the list of actions available.

Select the “Edit” action from the list and the “Edit” dialog bo will appear.

Make the necessary changes and click on the “OK” button to save the changes. Clicking on the “Cancel” button aborts the action. Do note that the name must be unique.

Order

The “Order” action allows you to rearrange the state machines in the workflow. To do so, click on the “More Actions” icon to display the list of actions available.

Select the “Order” action from the list. The “Order” dialog box will appear.

Simply drag and drop the state machines to the desired location. Click on the “OK” button after the state machines are rearranged. If there is only one state machine in the workflow, the “Order” action will not be available.

Explain

The “Explain” action allows you to display the details of the workflow. To do so, click on the “More Actions” icon to display the list of actions available.

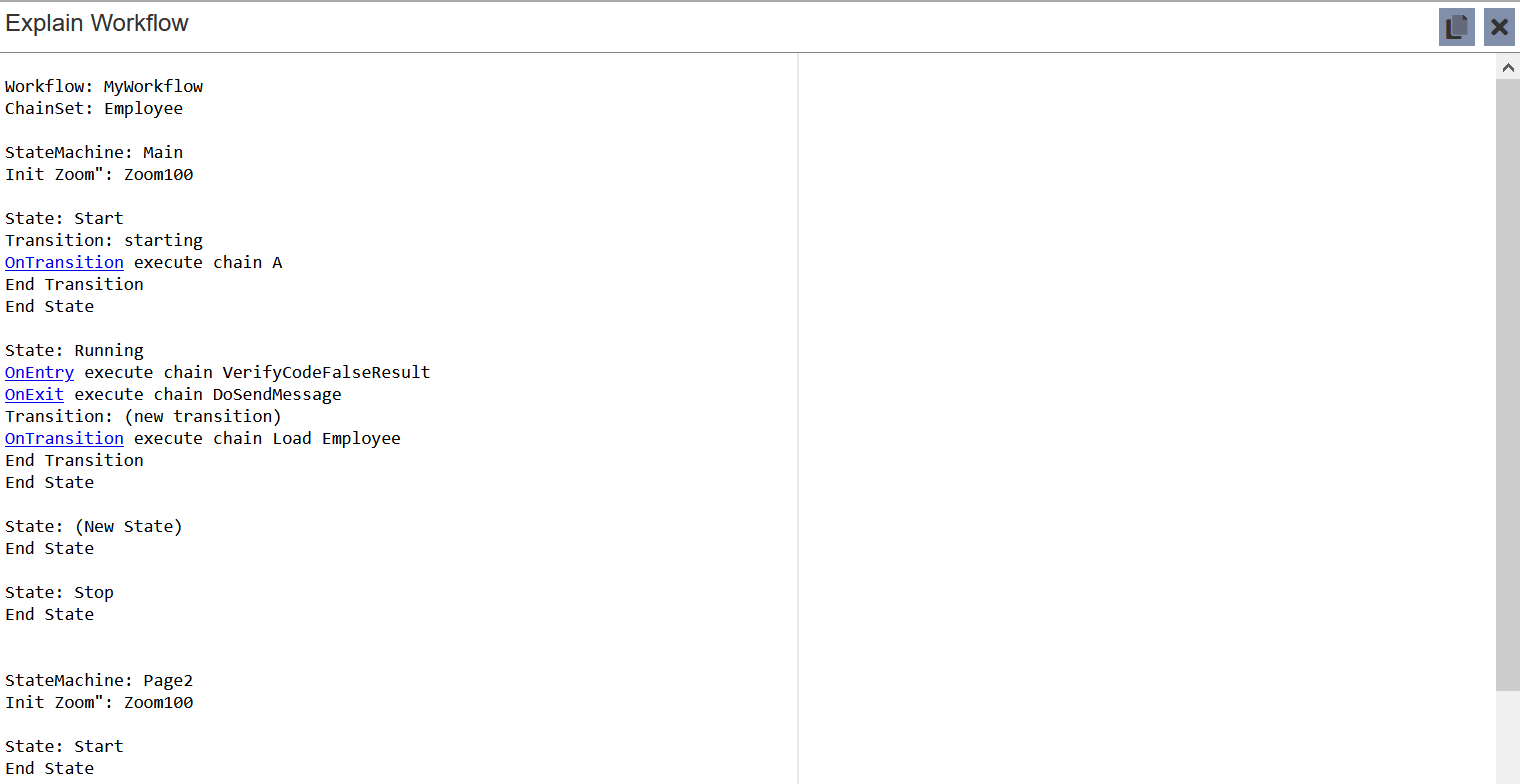

Select the “Explain” action from the list and the “Explain Workflow” page will appear.

In the “Explain Workflow” page, you can copy the details of the workflow by clicking on the “Copy” icon on the upper right corner of the page. To close the page, click on the “Close” icon on the upper right corner of the page.

Flow Panel

A workflow consists of states and transitions. It can be everything from from a task management, leave entitlement, sensor monitor application, email change request, etc.

The Flow Panel is located on the right of the page. It displays the states and transitions of the workflow in the form of a flow diagram. The initial workflow consists of the following processes:

  • Three states

    • Start state
    • Running state
    • Stop state
  • Two transitions

    • Start Workflow transition
    • Stop Workflow transition

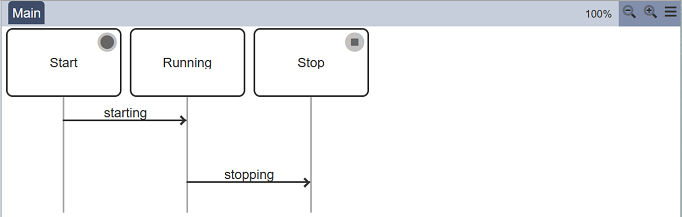

The first state is always Start and is indicated with a light grey outer circle and a dark grey inner circle at the upper right corner. The last state is always Stop and is indicated with a light grey circle and a smaller dark grey inner square at the upper right corner. They are the starting and ending points of a workflow respectively. There are no property for these 2 states, except for their labels and they cannot be relocated.

When the second state, which is Running or any of the transitions is selected, the actions available and its properties will be displayed in the Actions and Properties Panels respectively.

In the Flow Panel, you can select any state or transition clicking on the desired process. The selected process will be highlighted in blue. The available actions and the properties of the selected process will appear in the Actions and Properties Panels.

You can then edits the properties or add new process using the actions in the Actions and Properties Panels.

Actions Panel

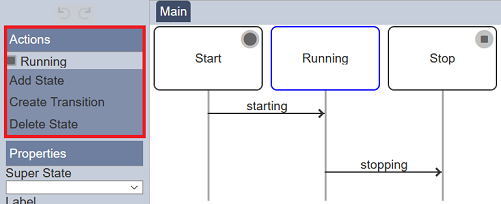

The Actions panel is located on the left of the page. It consists of two parts:

  • Name of selected state or transition
  • List of available actions (vary)

Action Description Process
Add State Adds new state into the workflow. State / Transition
Delete State Removes selected state from the workflow. State (except Start and Stop)
Create Transition Creates a transition between selected source and target states. State (except Stop)
Delete Transition Removes selected transition in the workflow. Transition

Add State

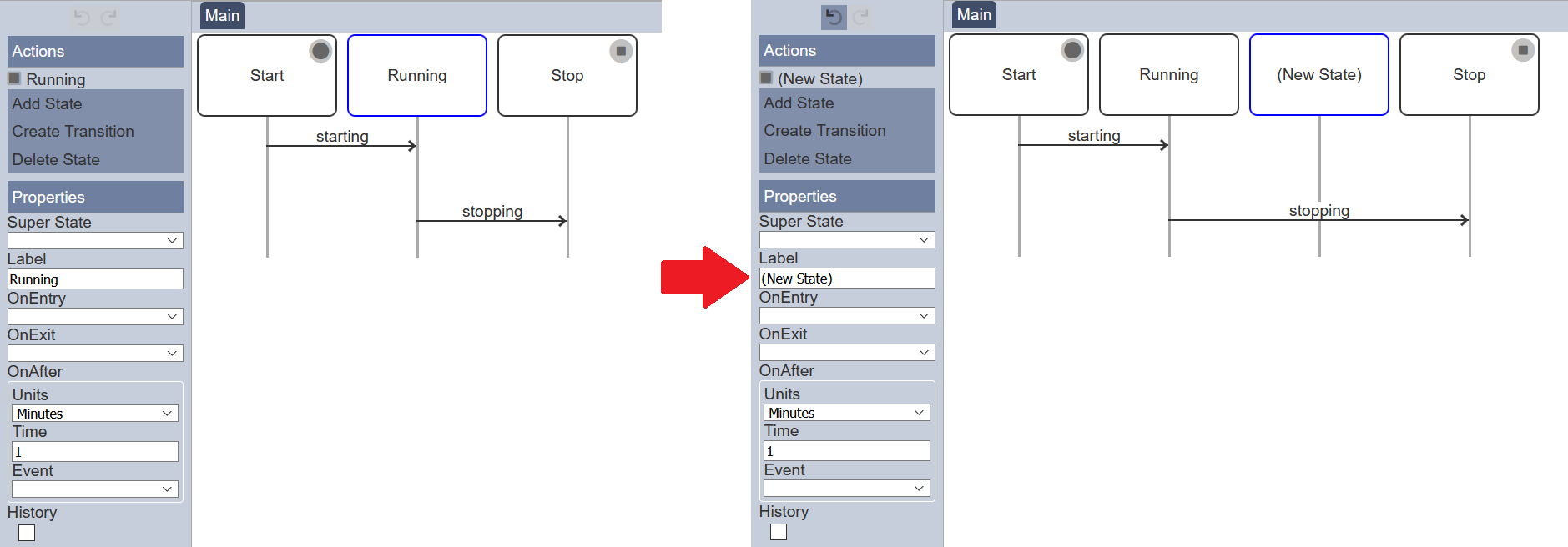

To add a new state, click on the “Add State” button on the Actions Panel. The (New State) new state will always be added before the Stop state. You can drag-and-drop the new state to the desired location if the current location is not desired.

The label and the properties of the newly added state (by default, the label is (New State)) can be changed in the Properties Panel.

Delete State

To delete a state, select the state to be deleted and click on the “Delete State” button on the Actions Panel. Any transitions linked to the selected state will be deleted as along with the state.

You can undo the action by clicking on the icon at the top of the Actions Panel.

Create Transition

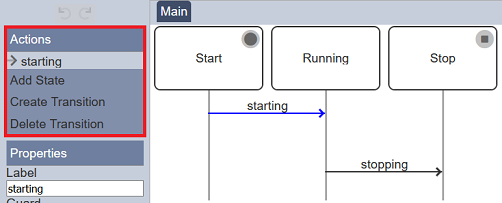

To add a new transition, select a state as the source state for the new transition. The available actions for the state will appear in the Actions Panel. Click on the “Create Transition” button then click on a state as the target state for the transition. The new transition is added between the source and target states.

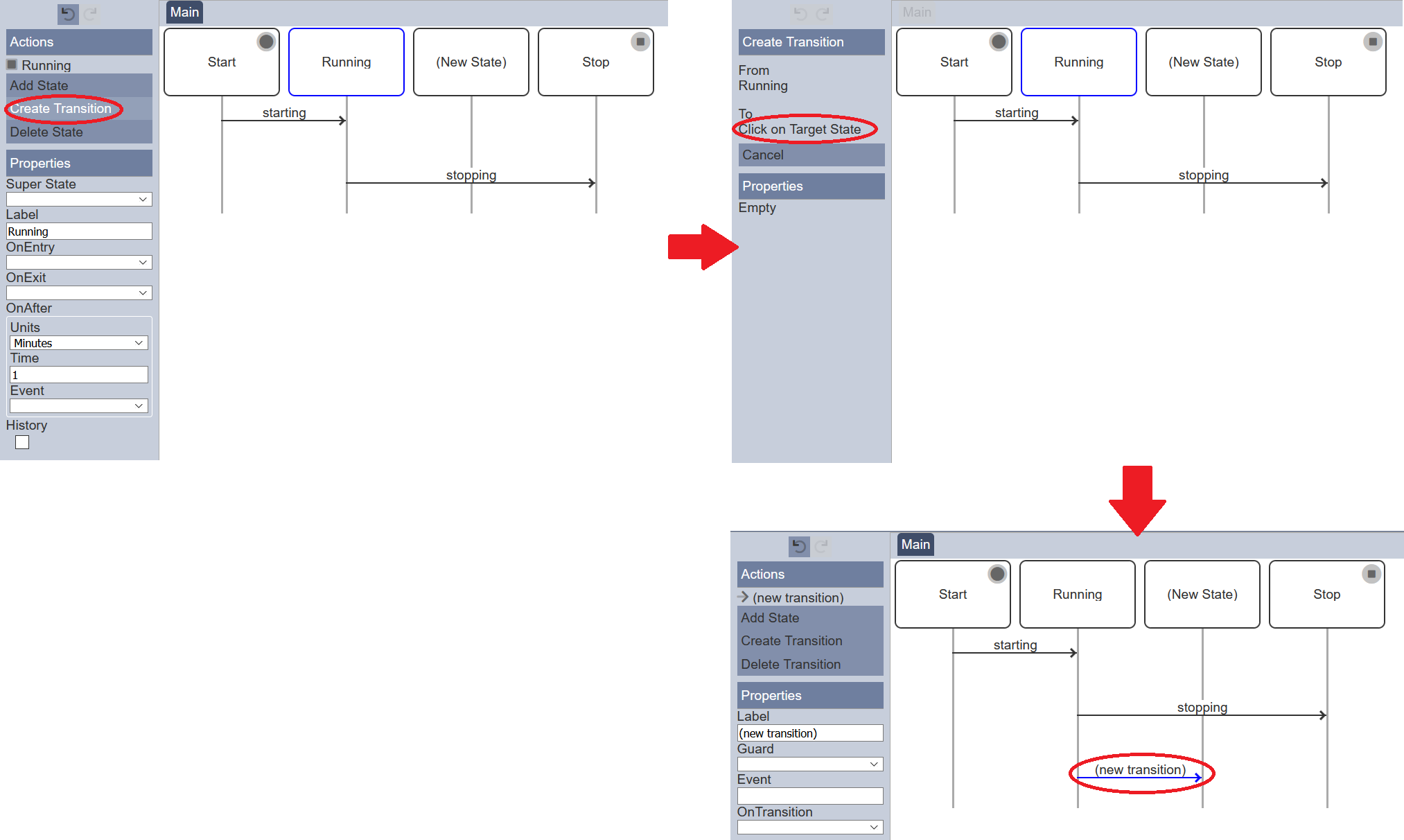

In the example below, a transition is added between Running and (New State) states. First, select the source state Running, then click on the “Create Transition” button on the Actions Panel on the left. A message will appear in the Actions Panel to prompt you to select the target state. Click on the (New State) state and a new transition (new transition) is added between the two states.

To abort the action, click on the “Cancel” button at the bottom of the Actions Panel.

The source and target states of the transition can be changed simply by drag-and-drop the start or end point of the transition to the desired state. Do note that you can select the same state as the source and target states of the transition, making a loop transition.

You can also re-order the transitions by drag-and-drop the transitions up or down.

The label and properties of the newly added transition (by default, the label is (new transition)) can be changes in the Properties Panel.

Delete Transition

To delete a transition, select the transition to be deleted and click on the “Delete Transition” button on the Actions Panel.

You can undo the action by clicking on the icon at the top of the Actions Panel.

Properties Panel

The Properties panel is located below the Actions Panel of the left of the page. It displays the properties of the selected state or transition. The properties vary according on the selected process. You can edit the properties of the states and transition to execute an ETL chain or state machine under certain condition or value.

State Properties

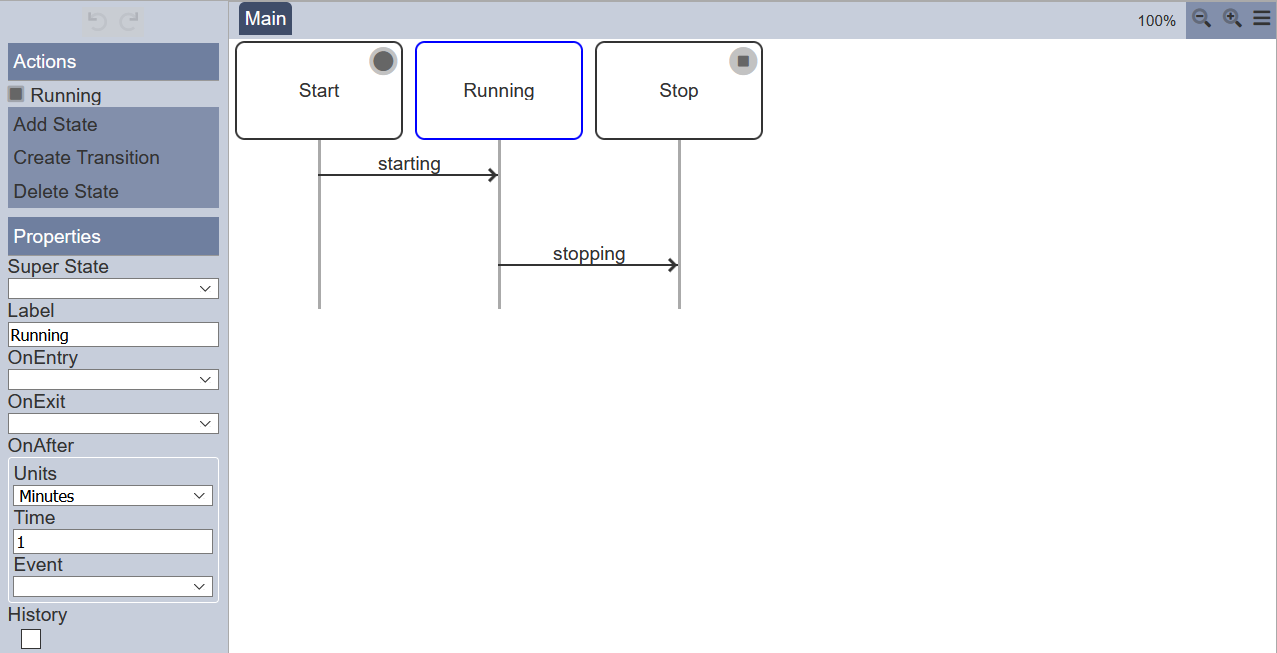

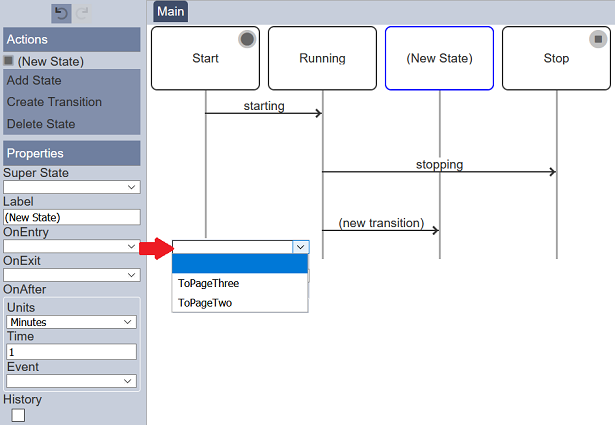

The below screenshot and table shows the properties for a state.

Field Description Mandatory Input Type Constraints Default Value
Super State Selects the super state that the current state belongs to. N Drop-down list Select from drop-down list Empty
Label Display the name of the state selected. Y Text field Any text Name of selected process
OnEntry Executes the ETL chain defined. Y Drop-down list Select from drop-down list Empty
OnExit Executes the ETL chain defined. Y Drop-down list Select from drop-down list Empty
OnAfter
Units Defines the unit for the Time field.
Options:
- Days
- Hours
- Minutes
Y Drop-down list Select from drop-down list. “Minutes”
Time Defines the time to execute the event. Y Text field Numeric “1”
Event Defines the event to be executed in the workflow at the defined time. N Drop-down list Select from drop-down list Not selected
History If selected, the state be a history state. N Checkbox None Not selected

The “Super State” field allows a state to declares that it is a sub-state of the selected state. This allows you to create nested states. Any transitions between the sub-states are contained within the Super state.

The “Label” property allows you rename the state to a more meaningful name.

The “OnEntry” and “OnExit” properties will execute a ETL chain. The chain can do anything from sending an email to updating the workflow instance state with a new value.

The “OnAfter” property has three sub-fields. This property allows you to executes an Event asynchronously to the workflow at a specified Time (in defined Units) in the future. The lists of event are taken from the available transitions.

The “History” field when selected allows you to declare it as a History state. The History state is responsible for remembering the state on exit and resuming that state on re-entry.

Refer to Examples below for more examples on Super state and History state.

Transition Properties

The below screenshot and table shows the properties for a transition.

Field Description Mandatory Input Type Constraints Default Value
Label Display the name of the transition selected. Y Text field Any text Name of selected process
Guard Evaluates the true or false of the input to the transition before executing the transition and moving to the next state on true condition. Y Drop-down list Select from drop-down list Empty
Event Defines the event that must be sent to Workflow engine.
If no event is specified, any event will trigger this transition.
N Text field Any text Empty
OnTransition Executes an ETL chain. Y Drop-down list Select from drop-down list Empty

The “Label” property allows you rename the transition to a more meaningful name.

The “Guard” property performs an evaluation the true or false of the input to the transition, before executing the transition and moving to the next state on true condition.

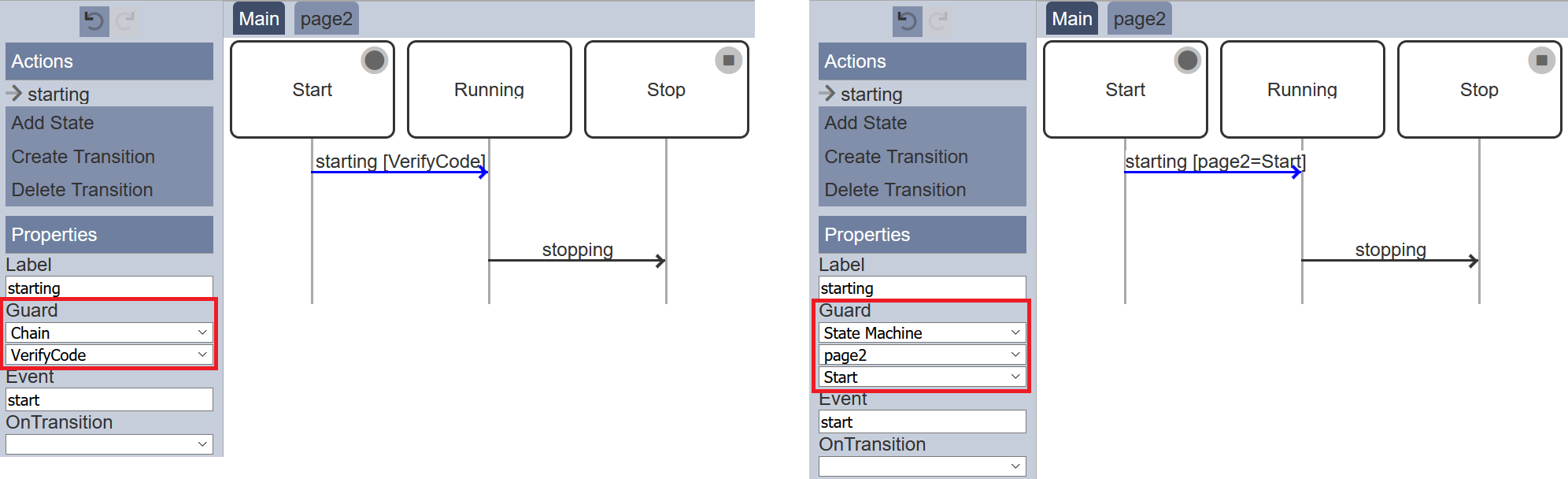

There are 2 options for the “Guard” property, namely “Chain” and “State Machine”. If the ETL chain or state machine is not available, their respective option will not be selectable. For the ETL chain to be selectable for the workflow, the Guard Endpoint ETL must be present in the ETL chainset. When one of the option is selected, their respective sub-field(s) will appear, which allows you to define the ETL chain or state for evaluation.

Field Description Input Type Default Value
Chain
Chain Selects either Chain or State Machine option. Drop-down list Empty
Name Name of ETL chain to execute. Drop-down list First option in the list
State Machine
State Machine Selects either Chain or State Machine option. Drop-down list Empty
Name Name of state machine. Drop-down list First option in the list
State Selects the state of the state machine. Drop-down list First option in the list
(which is Start state)

The “Event” property can have a specified event or left empty. If left empty, any event coming into the workflow will fire the transition, otherwise only an event with a matching name will fire the transition. Events can come into the workflow externally through the WorkflowAPI or internally through the “onAfter” property.

The “OnTransition” property will execute an ETL chain. The chain can do anything from sending an email to updating the workflow instance state with a new value.

Examples

Using Super State

Very often there are states that have some similarities between them. Think of them as a class of objects. It may be useful to create a generic class that these similar classes can belong to. Then create sub-classes for these similar classes. All sub-classes will inherit the traits of their parent class. The sub-classes can have their own “overrides” if required.

In the Workflow module, the same theory is used. Think of the Super state as the generic class and the sub-states as the sub-classes. The sub-states inherits the traits of the Super state, in this case, transitions. These nested states are particularly useful in reducing duplications.

The example below shows the advantages of using Super state.

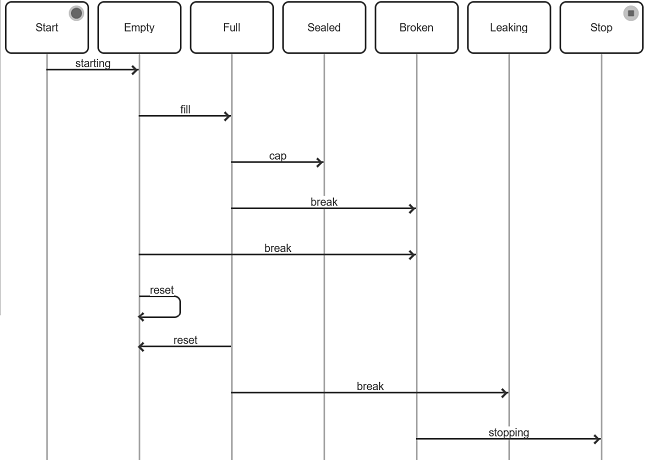

In this example, a simplified sample workflow of a process of filling bottles without using nested states. Each state has their own transitions and functions.

This creates duplicating transitions in the workflow, such as reset and break transitions. These duplication should be avoided as much as possible. A real life workflow is much more complex.

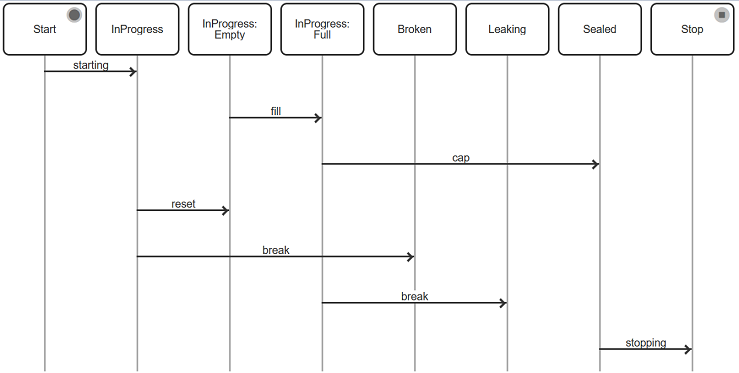

We can add a new abstract state called InProgress. InProgress is the super state while Empty and Full are its sub-states. The InProgress super state has two transitions, reset and break. These transitions are inherited by the sub-states. The sub-states can trigger these transitions, thus reducing the need to duplicate these transitions for each state.

Using History State

Below is an example of the use of a History state by using an employee state model which uses nesting states to abstract event of PayDay.

In this scenario, a confirmed employee of Grade2 returns to the company after taking no pay leave. When he returns, he will return to the Confirmed state.

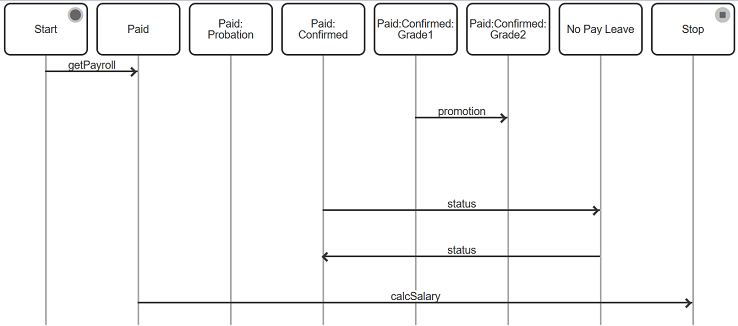

Since we do not know the previous state to return to, the transition places the employee back to Grade1, even thought he was in Grade2 before going on no pay leave.

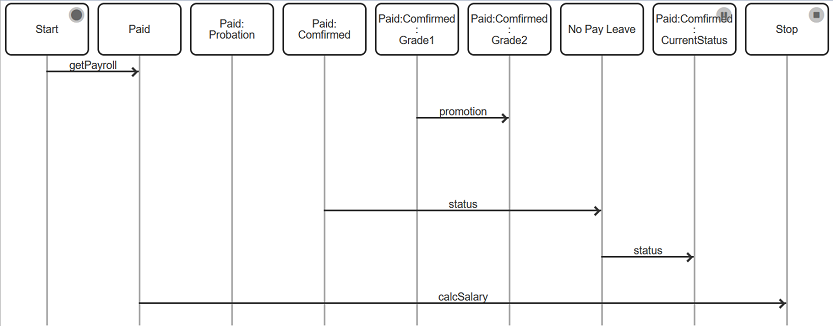

To solve this issue, a History state is added. The History state is responsible for remembering the state on Exit and resuming that state on re-entry.

When the employee goes on no pay leave, the Confirmed state goes to No Pay Leave state. The History state remembers the current state of the employee, such is Grade2.

When that employee returns to the company after his no pay leave, the No Pay Leave state returns to the History state. Since the History state remembers the state of the employee (i.e. Grade2), it resumes that state and place the employee back to the Grade2 state.
