Config Editor

Description

Configuration of a system need to change from time to time as requirements change. The configuration is usually set up in configuration files in the servers. To change the configuration of the system, you will need to edit the configuration file of each server and restart the servers for the new changes to take effect. A manual approach like this may cause errors and long down time.

The Config Editor module in the Ambience software suite allows you to manage and edit the configuration and save the change onto MongoDB.

The benefit of storing the config in MongoDB is that multiple servers can all share a single set, without the need to duplicate the .conf file across various servers. Do note that the config changes are not live, the server only loads the config next time it starts.

If there is a conflict, configuration stored in each application.conf takes precedence over shared config loaded from MongoDB.

To allow the Config Editor to load the configuration, the application.conf file need to add a line:

ambience.config-loader.mongdb.enabled = true

Module Interface

Interface Description Required Privilege
Config Editor Allows Config Editor module access mod-config-editor

Users with the mod-config-editor privilege will be able to see any changes to the Config Editor.

Add

To add a new config, click on the “Add” button at the upper right corner of the page.

The “Add” page will appear.

Key in an appropriate name for the new configuration in the “Section” field. In the textbox below, key in the configuration code.

Click on the “Save” button to save the new configuration or click on the “Cancel” button to abort. Upon successful save, a notification will appear and the new configuration will appear in the management page.

If there is any error in the config code, an error message will appear. Below is an example.

Refresh

After performing actions on the browser/tab, the list is reloaded to display the list of configs. The manual “Refresh” button is available and is particularly useful if there are others making changes on the same page.

The “Refresh” button is found on the upper right corner of the page. Clicking on it reloads the list.

Upload

To upload a config, click on the “Upload” button at the upper right corner of the page.

The “Upload” dialog box will appear.

Browse to the location of the new config file to upload. The “Name” field will by default use the name of the file selected. Change the name of the config file if the filename is not desired. Click on the “OK” button to upload the config file. Click on the “Cancel” button to abort the action.

If the name of the config already exist, an error message will appear.

To overwrite the existing config, check the “Overwrite” field before clicking on the “OK” button.

Upon successful uploading, a notification will appear.

Enable/Disable

A configuration when created is enabled by default. An enabled configuration is indicated with a green tick under the “Enabled” column corresponding the configuration. A disabled configuration is indicated with a red cross.

You can enable or disable a configuration in the by clicking on the “Enable Config” or “Disable Config” icons respectively under the "Actions column corresponding the desired configuration.

Edit

To edit a configuration, click on the “Edit” icon under the “Actions” column corresponding the desired configuration.

In the “Edit” page will appear.

Edit Page Interface

The page can be divided into three parts.

At the top of the page (grey), the “Section” and “Version” fields show the name and current version of the configuration respectively. On the left of these two fields shows the timestamp of the configuration.

When the configuration is newly created, the version always start with “1”. The version will be incremented by 1 with each subsequent save. You can switch between

The middle part is the code area (white), shows the code for the configuration.

The bottom part shows which line you are currently at.

Making Changes

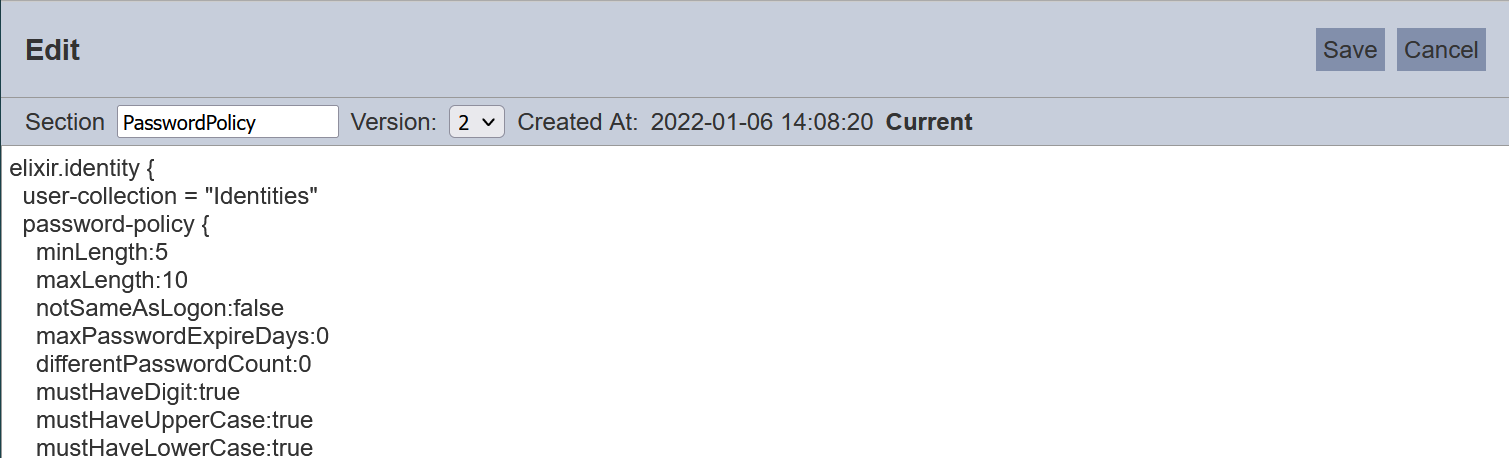

The example below sets the password policy to allow passwords to have at least five characters but not more than ten.

The new password policy now requires users to have both upper and lower case characters in their passwords. In the code, change both mustHaveUpperCase:false and mustHaveLowerCase:false to true.

Click on the “Save” button to save the code. Once the code is saved successfully, a message will appear and you will be returned to the management page.

If no changes are made, an error message will appear.

Re-start the server (or servers) for the configuration change to take effect. Try to change your password, it should only allow a password that is between five to ten characters. Other users will be affected by this change as well.

In the above example, the version is incremented from “1” to “2”. To view the version change, click on the icon under the “Actions” column corresponding the configuration.

The “Edit” page now shows the current version (which is “2”) and the timestamp when this version is saved.

View Previous Pages

All version of the configuration are kept in the Config Editor. You can view the previous version by clicking on the drop-down list. The previous version will be greyed-out.

Make Previous Config Current

You can make the previous version as the current version. Using the above example, this allows you to revert the password policy.

To do so, select the desired version from the drop-down list from the “Version” field. In this case, “2” is selected.

Click on the “Make Current” button at the upper right corner of the page.

The code of the selected version now replaces the code of the current version. Click on the “Save” button to save the change.

To verify, click on the icon under the “Actions” column corresponding the configuration in the management page.

The “Edit” page now shows the current version, which is “4” and the code of the configuration is copied from the selected version “2”.

Download

This function allows you to download an existing configuration by clicking on the “Download” icon under the “Actions” column corresponding the desired configuration.

The downloaded configuration has the following filename format <filename.configeditor.json>.

The search bar appears on the upper left corner of the page.

This provides an easy way to search through the list. It is case-insensitive and displays configs that have the entered search value in any of the values of the fields below:

  • Name
  • Last Modified By
  • Last Modified
