Blocks

Blocks include components such as column(s), page, row(s), etc. These block components work as placeholders for the input or action components to be placed.

To add a block component, simply drag and drop under the desired level. The block component will not show up in the form itself but creates a canvas for adding input and/or action components. Hence, a block component need to be added before any input or action component can be displayed in the form. The properties for each block component varies.

Cascade Group

The Cascade Group component allows you to create cascading input selects using the dataset defined. The data for the next input select depends on the selection from the previous input select. There can be any number of such selects.

It has the following properties.

Field Description Default
Id Name of the column that will be displayed in the form structure. “cascade-groupX”
Label Name of the component that will be displayed in the form. None
Dataset Dataset to be used. None
Cache If selected, loads the set of data once when the form loads.
If unselected, loads the data from the server any time a select is changed.
Selected

Example: Using Cascade Group

Below is an example of using Cascade Group component to create a form with cascading input select.

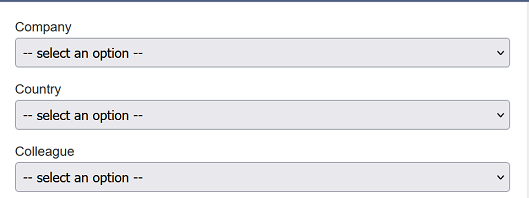

Add a Cascade Group component onto the form. Select the desired dataset to be used in the “Dataset” field. Then add three Data Select components onto the form. Set up the components are per the screenshot below.

Run the form without any workflow.

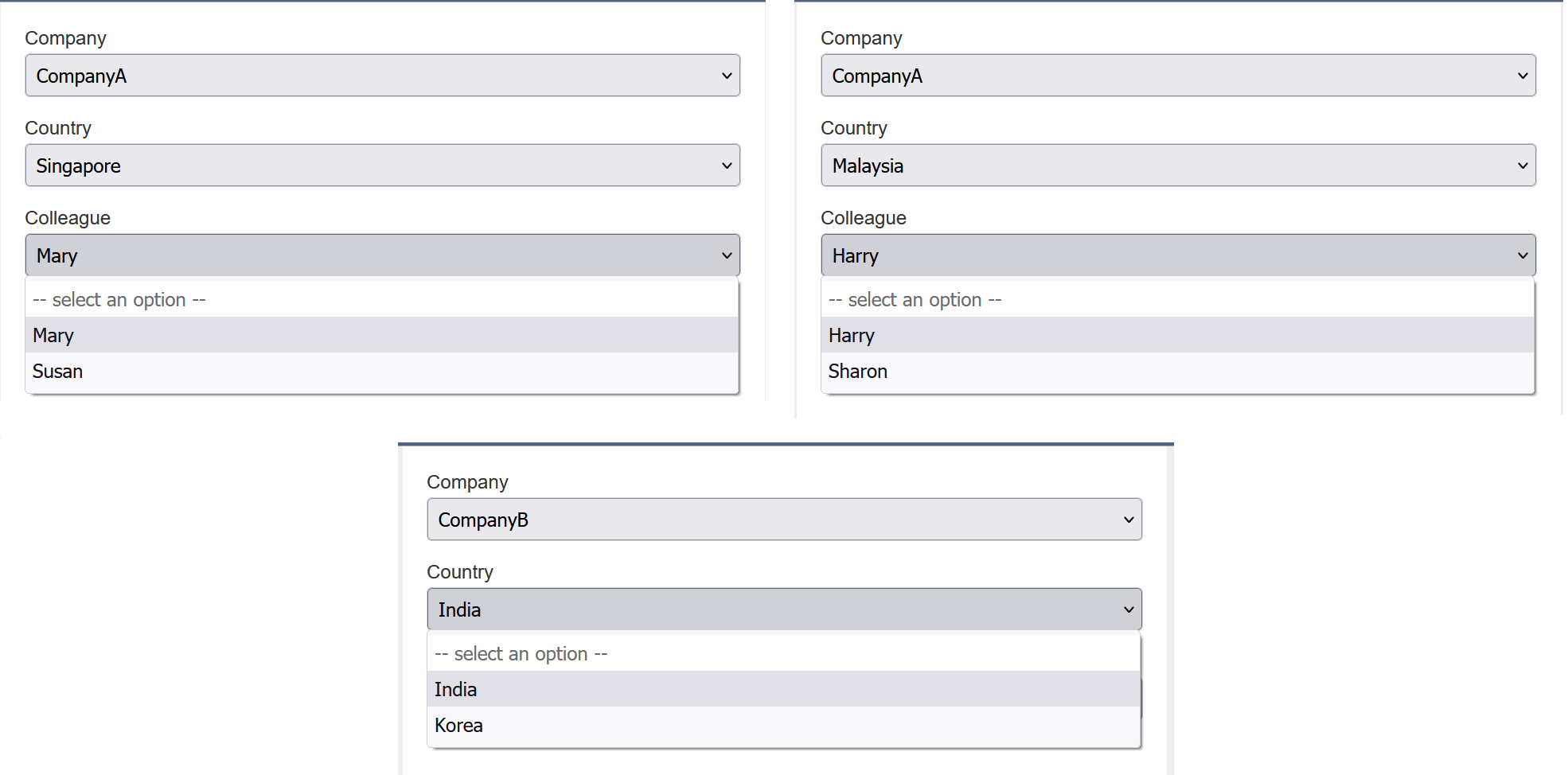

Select the any option in the “Company” field. The available options for the selected option will appear in the “Country” field. Depending on the option selected in the “Country” field, the available options for the selection option will appear in the “Colleague” field.

In the example above, different option selected in the “Company” field gives a different set of options in the “Country” field. And the different option selected in the “Country” field will give a different set of options in the “Colleague” field.

Column

A Column component allows you to add a single column onto the form, as well as defining its width. It has the following properties.

Field Description Default
Id Name of the column that will be displayed in the form structure. “columnX”
Label Name of the column that will be displayed in the form. None
Minimum Width Minimum width of the column. 20rem
Maximum Width Maximum width of the column. If not defined, the width of the device is used.

Columns

The Columns component acts as a placeholder that allows multiple single columns to be added onto the form. It is particularly useful when you need to show or hide some inputs based on previous selection using the rules being set up prior.

It has the following properties.

Field Description Default
Id Name of the multiple columns that will be displayed in the form structure. “columnsX”
Label Name of the multiple columns that will be displayed in the form. None

Page

The Page component allows you to create a multiple-paged form. It has the following properties.

Field Description Default
Id Name of the page that will be displayed in the form structure. “pageX”
Label Name of the page that will be displayed in the form. None
Validator Chain Selects the ETL chain to validate the form.
The “root” need to define the ETL chainset for the form before this field has any option to select.
None

Row/Rows

The Rows/Rows component allows you to add a row or multiple rows onto the form. A row only allows you to add input or action component in a single row while multiple rows, as the name implies, allows you to add multiple rows of input or action components.

It has the following properties.

Field Description Default
Id Name of the row or multiple rows that will be displayed in the form structure. “rowX”
Label Name of the row or multiple rows that will be displayed in the form. None

Tab Bar

The Tab Bar component along with the Tab Panels, allows you to create form with multiple tabs. It puts a placeholder in the form to display the names of the Tab Panel components that were added into the form under it.

It has the following properties.

Field Description Default
Id Name of the Tab Bar that will be displayed in the form structure. “tab-barX”

If no Tab Panel components are added onto the form under the Tab Bar component, the Tab Bar component will not be visible in the form. Once Tab Panel components are added under the Tab Bar component, the labels of the Tab Panel components will appear in the Tab Bar component.

Tab Panel

The Tab Panel component along with the Tab Bar component, allows you to create form with multiple tabs. The Tab Panel components are to be added under the Tab Bar component.

It has the following properties.

Field Description Default
Id Name of the Tab Panel that will be displayed in the form structure. “tab-panelX”
Label Name of the Tab Panel that will be displayed in the form. None

Example: Using Tab Bar and Tab Panels

The simple example below creates a form with two tabs.

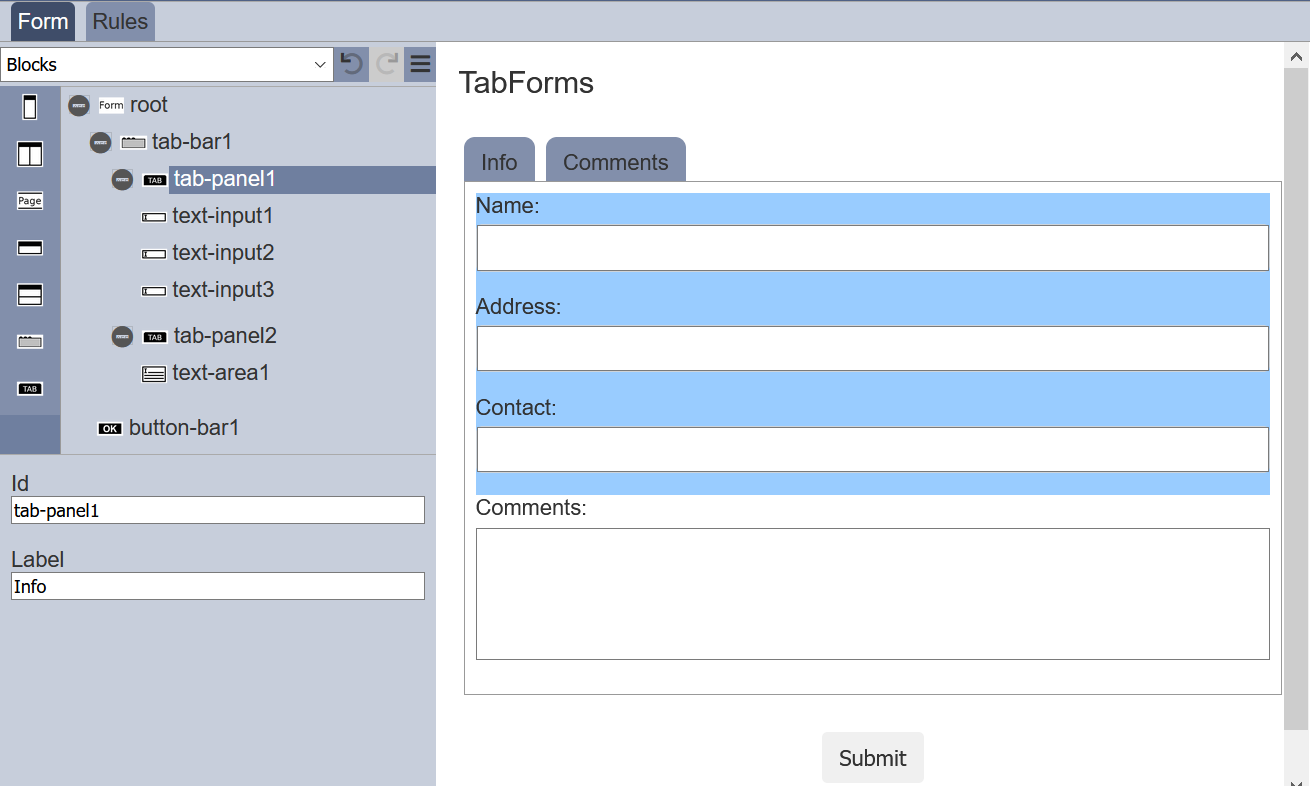

Create a form with the following components under the root. The Tab Bar component (tab-bar1) is first added to the root, which places a placeholder to display the labels of the subsequent Tab Panel components that are added.

Two Tab Panel components (tab-panel1 and tab-panel2) are added under tab-bar1. Change the value in “Label” fields as “Info” and “Comments” for tab-panel1 and tab-panel2 respectively.

The two labels will appear in the Tab Bar (tab-bar). This will allow you to switch between the two tabs. Add the Input components into the two Tab Panel components and the Action component onto the root. Do note that the Input components will appear in the right panel of the Form Designer according to the sequence they are added into the form structure.

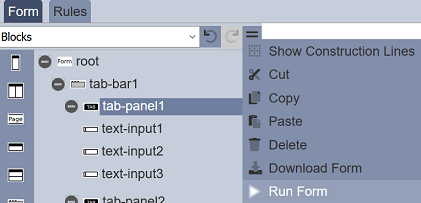

To test the form, click on the “More Actions” icon at the upper right corner of the Top Row and select “Run Form”.

In the “Run Form” dialog box, select the “No Workflow” option (as this is just an example, there are no workflow). Click on the “OK” button to run the form.

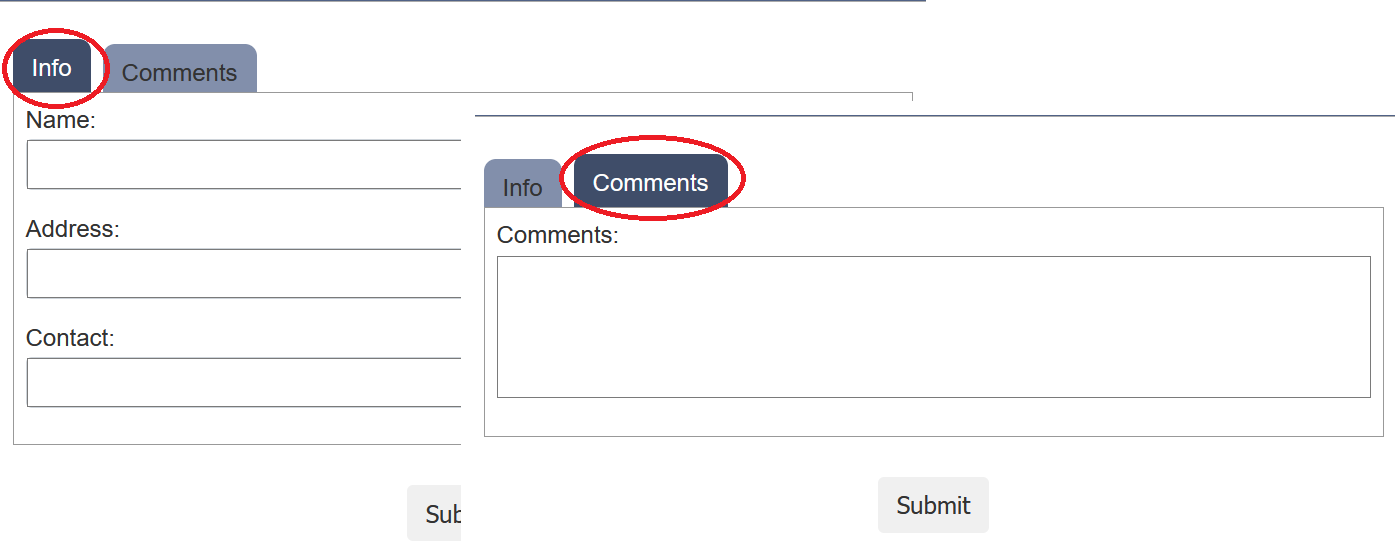

In the tab that the form appears, the default tab will be the first tab, in this case, its the “Info” tab. To go to the next tab, click on the tab “Comments” at the top.
