Inputs

Inputs includes input field components such as single line text input, multiple line text area, radio button, checkbox, drop-down selection, dataset selection, etc. To display an action component in the form, a block need to be added onto the form before the input component can be added.

To add an input component onto the form, simply drag and drop to the desired location in the form structure. To edit the properties, simply select the desired component and the properties of the desired component wil lbe displayed at the lower panel.

Checkbox

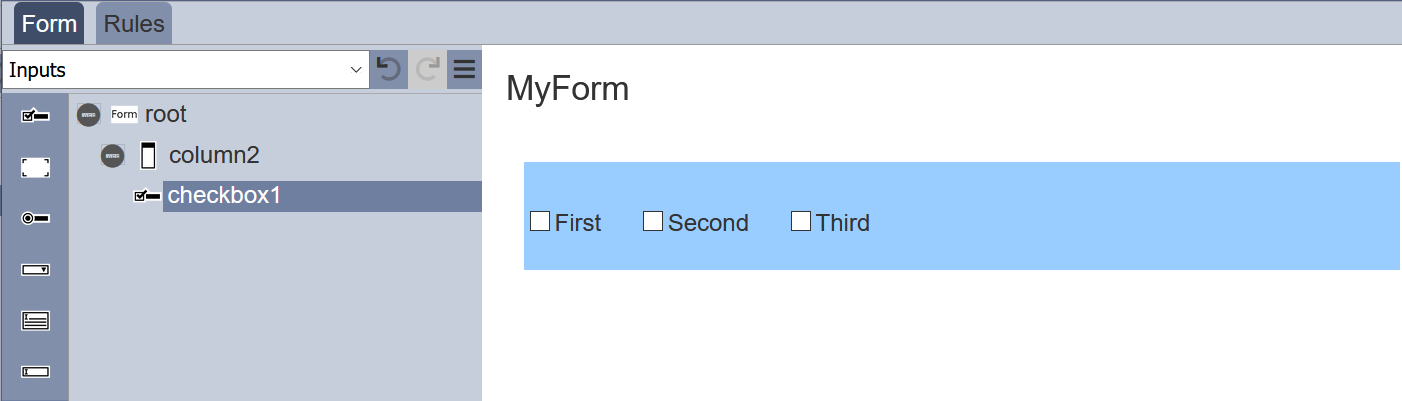

The Checkbox component allows you to add checkbox options onto the form.

It has the following properties.

Field Description Default
Id Name of the component that will be displayed in the form structure. “checkboxX”
Label Name of the component that will be displayed in the form. None
Choices Defines the checkbox choices on the form. “First”, “Second”, “Third”
Display Inline If selected, displays the checkboxes in a row. If unselected, displays the checkboxes in several rows. Selected
Help Text Text that will be displayed below the input. None

The checkbox options can be edited using the “Choices” field, with one option in a row.

Dataset Checkbox

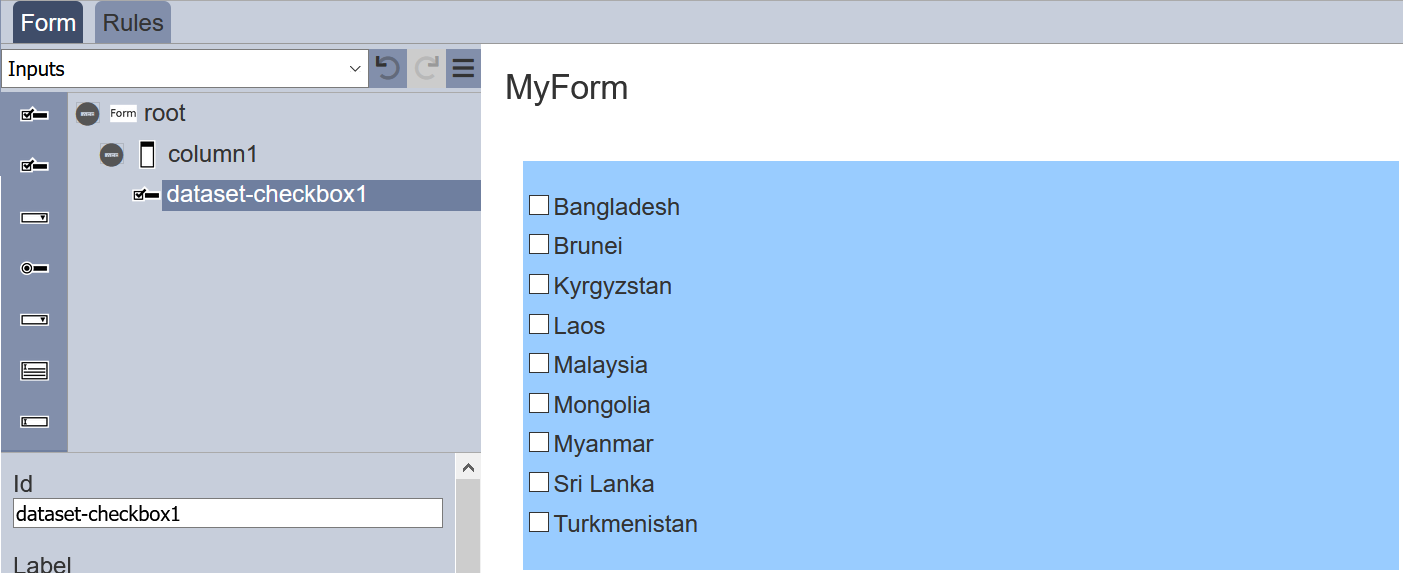

The Dataset Checkbox component allows you to add dataset selection options in the form of checkbox onto the form. Multiple select is permitted.

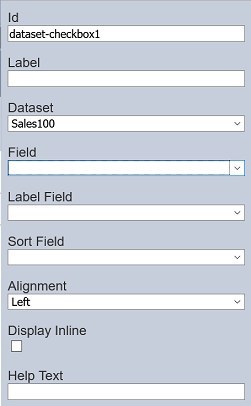

It has the following properties.

Field Description Default
Id Name of the component that will be displayed in the form structure. “dataset_selectX”
Label Name of the component that will be displayed in the form. None
Dataset Selects the dataset to be used. None
Field Selects the field from the selected dataset to be used. None
Label Field Selects the field whose values are to be displayed. None
Sort Field Selects the sorting field. None
Alignment Alignment of the checkboxes in the form.
Available options:
- Left
- Centre
- Right
Left
Display Inline If selected, displays the checkboxes in a row. If unselected, displays the checkboxes in several rows. Selected
Help Text Text that will be displayed below the input. None

Dataset Select

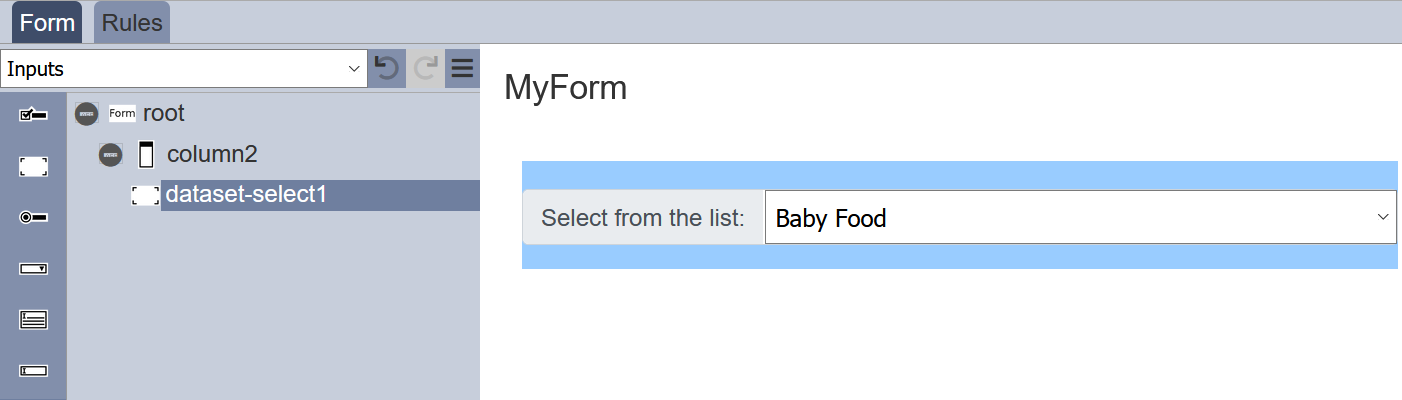

The Dataset Select component allows you to add dataset selection options in the form of drop-down list onto the form.

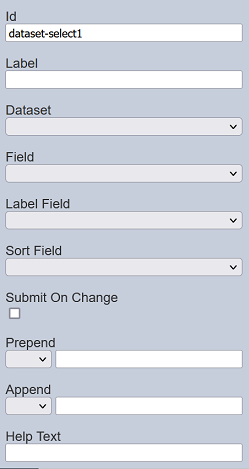

It has the following properties.

Field Description Default
Id Name of the component that will be displayed in the form structure. “dataset_selectX”
Label Name of the component that will be displayed in the form. None
Dataset Selects the dataset to be used. None
Field Selects the field from the selected dataset to be used. None
Label Field Selects the field whose values are to be displayed. None
Sort Field Selects the sorting field. None
Submit On Change If selected, when a choice is made, the form is auto submitted. Not selected
Prepend Select either to display text, image or none before the choices. None
Append Select either to display text, image or none after the choices. None
Help Text Text that will be displayed below the input. None

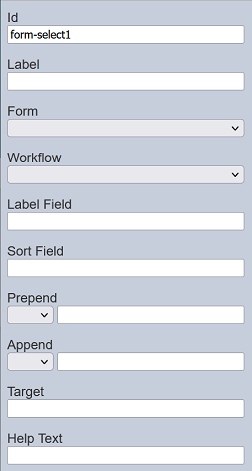

Form Select

The Form Select component allows you to link one form onto another form.

It has the following properties.

Field Description Default
Id Name of the component that will be displayed in the form structure. “form-selectX”
Label Name of the component that will be displayed in the form. None
Form Selects the form from the drop-down list. Blank
Workflow If selected, displays the checkboxes in a row. If unselected, displays the checkboxes in several rows. Selected
Label Field Selects the field whose values are to be displayed. None
Sort Field Selects the sorting field. None
Prepend Select either to display text, image or none before the choices. None
Append Select either to display text, image or none after the choices. None
Help Text Text that will be displayed below the input. None

Refer to Examples for a simple example on how to use Form Select component.

Radio Button

The Radio Button component allows you to add radio button options onto the form.

It has the following properties.

Field Description Default
Id Name of the component that will be displayed in the form structure. “radio-buttonX”
Label Name of the component that will be displayed in the form. None
Choices Defines the radio button choices on the form. “First”, “Second”, “Third”
Display Inline If selected, displays the checkboxes in a row. If unselected, displays the checkboxes in several rows. Selected
Help Text Text that will be displayed below the input. None

The radio button options can be edited using the “Choices” field, with one option in a row.

Multiple Selection

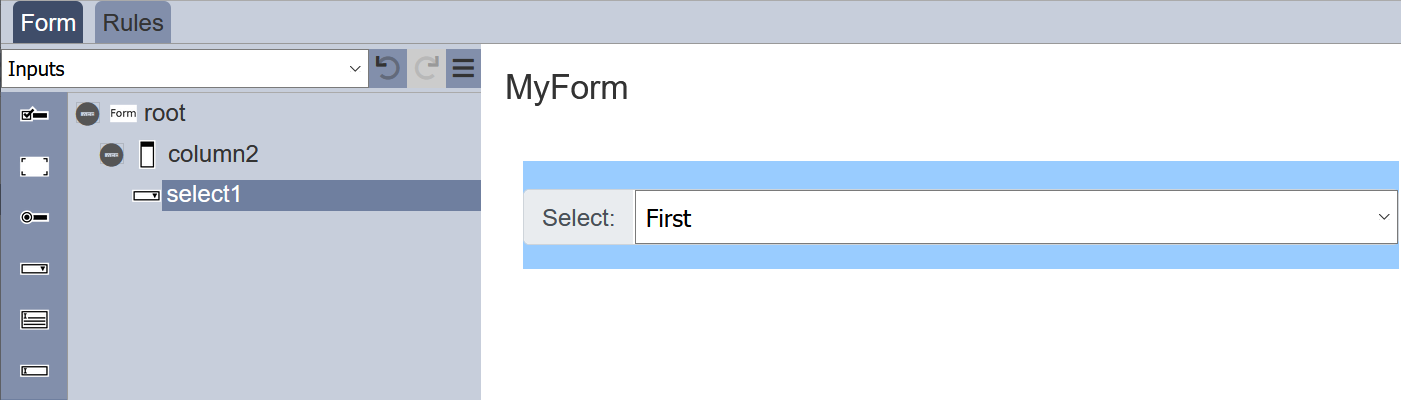

The Multiple Selection component allows you to place a drop-down selection onto the form.

It has the following properties.

Field Description Default
Id Name of the component that will be displayed in the form structure. “selectX”
Label Name of the component that will be displayed in the form. None
Choices Defines the drop-down choices on the form. “First”, “Second”, “Third”
Submit On Change If selected, when a choice is made, the form is auto submitted. Not selected
Prepend Select either to display text, image or none before the choices. None
Append Select either to display text, image or none after the choices. None
Help Text Text that will be displayed below the input. None

The selection options can be edited using the “Choices” field, with one option in a row.

Dynamic Select

The choices for the Multiple Selection component can be edited using the “Choices” field in its properties. This make the choices static, which means it cannot be changed unless the “Choices” field is edited.

You can make the choices dynamic without having to edit the “Choices” field in the form.

Below is a simple example of using ETL chainset and workflow to create dynamic choices.

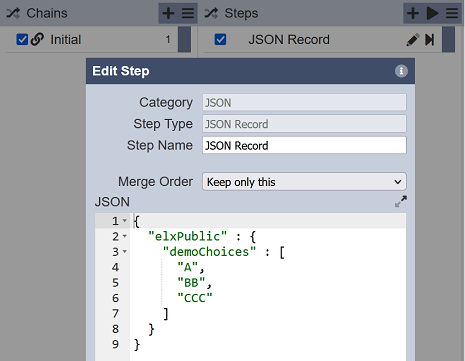

First, create an ETL chainset using the ETL module. Add a “JSON Record” ETL step that initialises the elxPublic with the choices for the form.

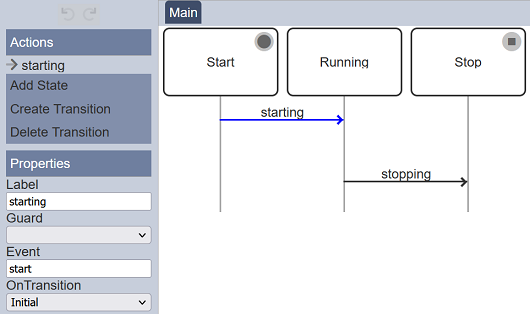

Second, create a workflow using the Workflows module with the settings are per screenshot.

In the workflow, select “starting” transition. Set the “OnTransition” field to “Initial” in the “Properties” panel.

Third, create a simple form with a Multiple Selection component with no choices defined. You can also add a HTML component to view the choices. Set up the two components are per the screenshot below.

When the “Choices” field in the Multiple Selection component is not defined (i.e., left blank), it will look for choices in the elxPublic by taking the “Id” field (“demo”) and + “Choices”. In other words, it will look for “demoChoices”.

Lastly, test the form by clicking on the “More Actions” icon at the top row and select the “Run Form” option. In the “Run Form” dialog box, select the workflow created earlier, in this case “DynamicSelect-Form”.

The form is generated in another tab.

You can click on the “Drop-Down List” to select the choices listed in the ETL. The HTML view component also displays the values of the Multiple Selection component.

With this dynamic select, you have different set of choices for the same form instead of creating different forms for different situations.

Do note that this dynamic select method also works with the Checkbox component.

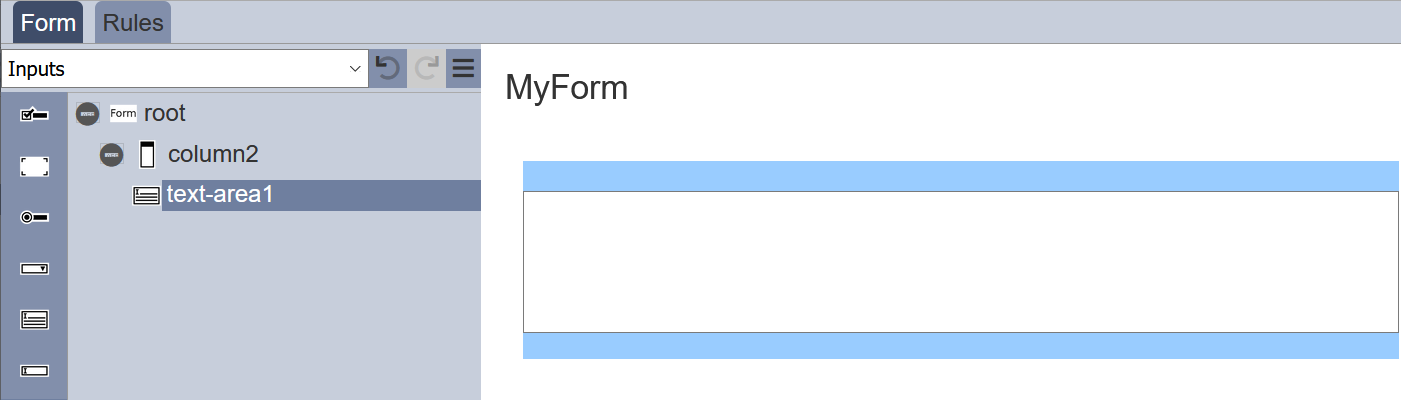

Text Area

The Text Area component allows you to place a multiple-lined text box onto the form.

It has the following properties.

Field Description Default
Id Name of the component that will be displayed in the form structure. “selectX”
Label Name of the component that will be displayed in the form. None
Visible Rows Number of rows (between 2 to 50) on the form. “5”
Value Defines the default value. None
Help Text Text that will be displayed below the text area. None

The number of lines to be displayed on the form via “Visible Rows” field can be from 2 to 50, default is 5 lines.

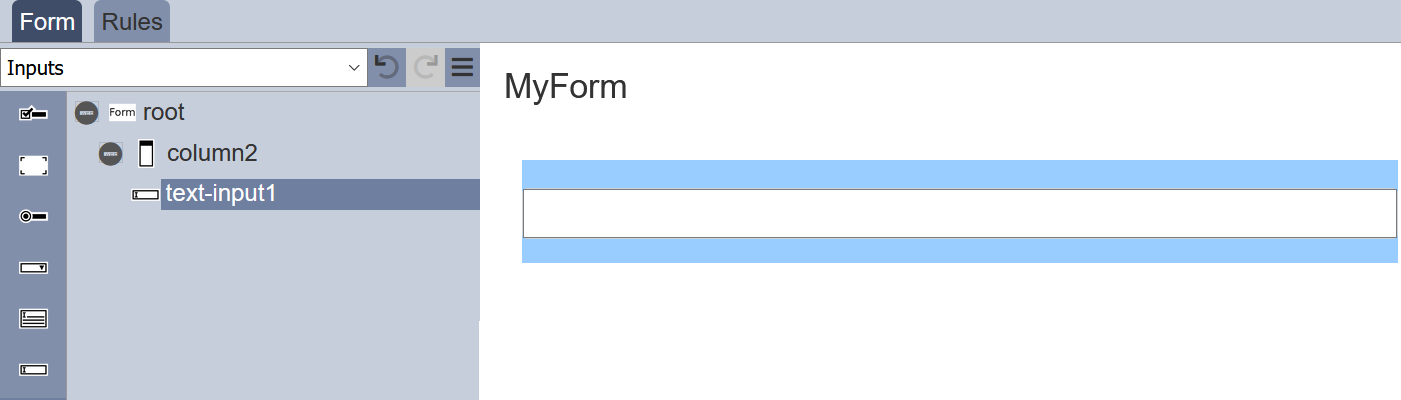

Text Input

The Text Input component allows you to place a single-lined input onto the form. The type of input comes in several form as defined in the “Input Type” field.

It has the following properties.

Field Description Default
Id Name of the component that will be displayed in the form structure. “selectX”
Label Name of the component that will be displayed in the form. None
Input Type Selects the type of input.
Available option:
- Text
- Password
- Number
- File
“Text”
Placeholder Suggestion text for the text input.
E.g.: Enter your password
None
Value Defines the default value. None
Prepend Select either to display text, image or none before the input. None
Append Select either to display text, image or none after the input. None
Autocomplete If selected, allows autocomplete. Not selected
Help Text Text that will be displayed below the text area. None
