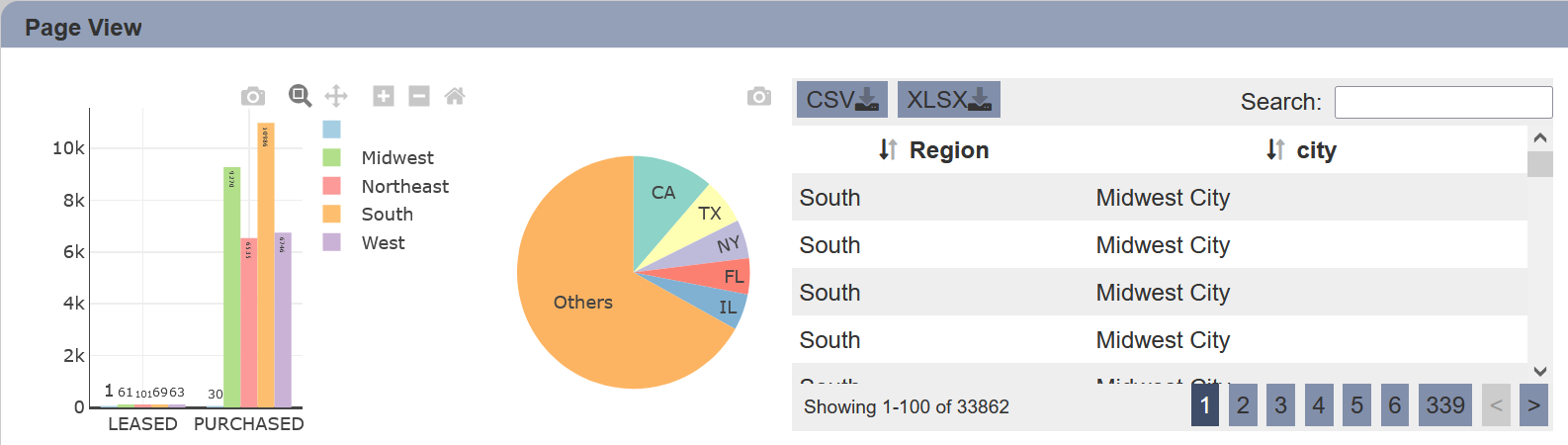

Page View
The page view allows you to load a dashboard page into a view.
The following is a list of the fields in the View Properties box in the dashboard designer for page view. There are some required fields to be set for each created view.
Basic Properties
The View Properties fields vary in different charts. Below are the basic properties in the View Properties box.
| Field | Description | Mandatory |
|---|---|---|
| View Type | Type of chart, table or view. | Yes |
| Title | Name of the view. | No |
| Page | Selects the page to load into the view. | Yes |
| Row Height | Defines the size of the view to be loaded. By default, height is set to 20. |
Yes |
Other Properties
The other property fields are available to enhance the view. Below are the other properties in the View Properties box for the page view.
| Field | Description | Default |
|---|---|---|
| Click to Page | Adds a link to another view. | Empty |
| Click to Page Tip | Adds a brief description of the link above. | Empty |
| Maximisable | If selected, places a maximise button on the top right of the view (when not in edit mode). This will maximise the view to fill the browser. |
Not selected |
| Margins | Allows adjusting margins and padding between charts and grid. | Default settings |
| Advanced | Add a special CSS class to your view. | Empty |
