Tooltip

The Tooltip filter control allows you to add a tooltip to a specific type of pins with a pre-defined text.

Visual Usage

Depends on the setting, the tooltip will appear when hovering over the pin.

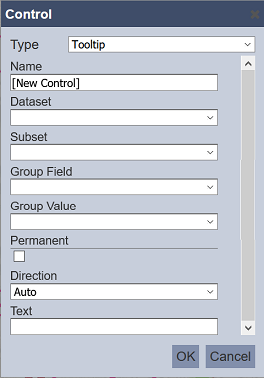

Control Properties

Below are the fields for this filter control:

Field Description Mandatory Input Type Constraints Default Value
Type Selects the type of filter control. Y Drop-down list Select from drop-down list “Pin Filter”
Name Unique name of the filter control. Y Text field Any text “[New Control]”
Collapsible Indicates if the control, if displayed on view mode, can be collapsed and expanded.
This also acts as the “switch” to enable or disable the control. If collapsed, the control is disabled. If expanded, the control is applied. Selected options are retained when collapsing and expanding controls.
Y Checkbox Enable or disable Enabled
Visibility Indicates if the control would be displayed on the explorer.
Available options:
- Always (always displays the control on the explorer, regardless of usage)
- When Used (only displays the control on a page if at least one explorer on the same page is linked to it)
- Hidden (won’t be displayed regardless of usage)
Y Drop-down list Select from drop-down list “When Used”
Dataset Dataset to be used in the filter. Y Drop-down list Select from drop-down list None
Subset Subset of the dataset selected. Y Drop-down list Select from drop-down list
The dataset must be selected first.
None
Group Field Field of the selected dataset to be filtered. Y Drop-down list Select from drop-down list None
Group Value Value of the field selected in Group Field. Y Drop-down list Select from drop-down list None
Permanent If selected, tooltip is always displayed on the pin.
If not selected, tooltip will only appear when pin is not hovered over.
Y Checkbox Enable or disable Disabled
Direction Defines the direction of the tooltip.
Available options:
- Auto
- Right
- Left
- Top
- Bottom
- Center
Y Drop-down list Select from drop-down list “Auto”
Text Defines the text to appear in the tooltip. Y Text field Any text None
