Select Filter

Description

This filter control is commonly used to filter datasets based on one specific field identified in the Filter property. This is a single-field filter and allows only a single option to be selected when used on the Viewer. This is suitable for string-type fields (field identified for Filter) with not so many options that also require only one value to be selected at a time.

Viewer Usage

To select an option, simply select the checkboxes corresponding the value. Only one option can be selected at a time.

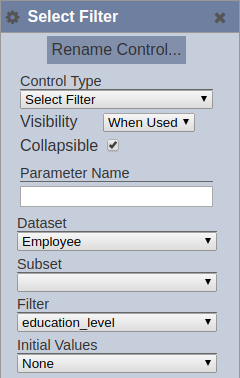

Specific Properties

Below are the fields that are specific to this control:

Field	Description	Mandatory	Input Type	Constraints	Default Value
Initial Values	Determines the initial set or selected values upon loading in the Dashboard Viewer. This corresponds to the field selected for the “Filter” property.	Y	Select	1 value can be selected. Available options are: - None (all options are deselected) - First (only the first displayed option is selected) - Last (only the last displayed option is selected) - All (all of the options are selected) - Values (first element of comma-separated values entered in the field that appears below this property; spaces are allowed before and after the comma)	“None”
