HTML View

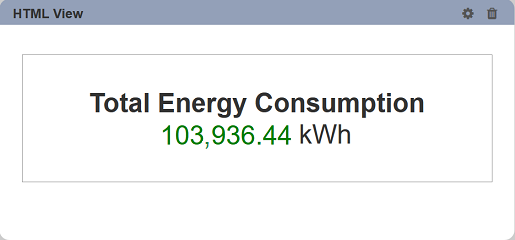

The HTML View allows you to create and display a HTML banner or view.

The following is a list of the fields in the View Properties box in the dashboard designer for HTML view. There are some required fields to be set for each created view.

Basic Properties

The View Properties fields vary in different charts. Below are the basic properties in the View Properties box.

Field	Description	Mandatory
View Type	Type of chart, table or view.	Yes
Title	Name of the view.	No
Dataset	Data used for the chart, table or view.	Yes
Subset	Partial data from a dataset used for the chart, table or view.	No
HTML	Defines the parameters and static text of the HTML view.	Yes
Script	Defines the script to display the value in the view.	Yes

The dataset and subset data derive from Dataset Management. Choose the right chart from the View Type and data points to build a view.

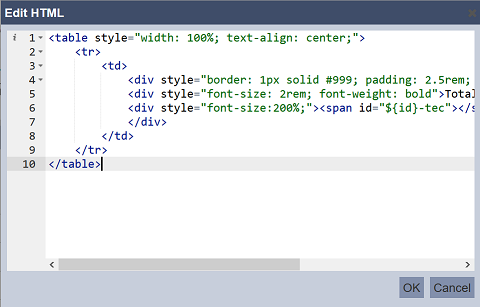

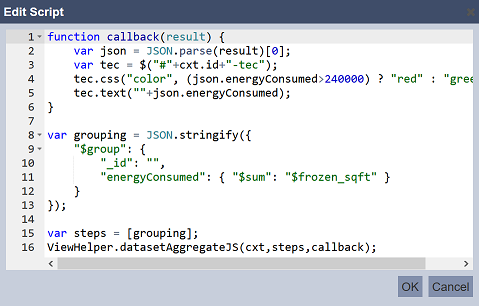

For the “HTML” and “Script” properties, click on the property box to display their respective dialog box. Enter the desired commands and click on the “OK” button to save the changes.

Other Properties

The other property fields are available to enhance the view. Below are the other properties in the View Properties box for the HTML view.

Field	Description	Default
Controlled By	Links dashboard controls to the view. One or more controls can be added to affect the data displayed on the view.	Empty
Click to Page	Adds a link to another view.	Empty
Click to Page Tip	Adds a brief description of the link above.	Empty
Maximisable	If selected, places a maximise button on the top right of the view (when not in edit mode). This will maximise the view to fill the browser.	Not selected
Advanced	Add a special CSS class to the view.	Empty
