Box Plot

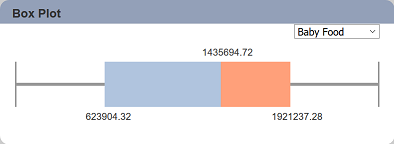

The box plot allows you to display the distribution of data based on the 5-number summary of a set of data. The 5-number summary are minimum, first quartile, median, third quartile, and maximum.
The following is a list of the fields in the View Properties box in the dashboard designer for box plot. There are some required fields to be set for each created view.
Basic Properties
The View Properties fields vary in different charts. Below are the basic properties in the View Properties box.
Field | Description | Mandatory |
---|---|---|
View Type | Type of chart, table or view. | Yes |
Title | Name of the view. | No |
Dataset | Data used for the chart, table or view. | Yes |
Subset | Partial data from a dataset used for the chart, table or view. | No |
Columns | Displays the flow rate between the column fields selected (minimum 2 columns). | Yes |
Group | Places the output of the dataset/subset into separate groups or data traces based on field selected. | Yes |
Value | Defines the field to be displayed in the box plot. | Yes |
The dataset and subset data derive from Dataset Management. Choose the right chart from the View Type and data points to build a view.
Other Properties
The other property fields are available to enhance the view. Below are the other properties in the View Properties box for the box plot.
Field | Description | Default |
---|---|---|
Controlled By | Links dashboard controls to the view. One or more controls can be added to affect the data displayed on the view. |
Empty |
Zero Based | If selected, explicitly sets minimum value to 0. If not selected, uses the minimum value from the dataset. |
Not selected |
Click to Page | Adds a link to another view. | Empty |
Click to Page Tip | Adds a brief description of the link above. | Empty |
Maximisable | If selected, places a maximise button on the top right of the view (when not in edit mode). This will maximise the view to fill the browser. |
Not selected |
Margins | Allows adjusting margins and padding between charts and grid. | Default settings |
Advanced | Add a special CSS class to the view. | Empty |
