Date Range Inject

Description

This inject control is commonly used to pass a value in document structure to other Ambience components as a child element of $elx-etl-inject. This has two input fields that allows date range selection, which includes both start and end dates. One date picker is provided for each. There is also an option to enable and disable the start (From) and end (To) date selectors. This is suitable for passing date values.

Selected values are passed in this format:


{ <Inject Field> : { from : "<yyyy-MM-dd of selected "From" date>", to : "<yyyy-MM-dd of selected "To" date>" } }

Sample:

{
dates :
    {
        from : "2020-01-01",
        to : "2020-12-31"
    }
}

If the “From”, “To” or both are disabled, the fields are excluded.

Sample:

{
dates :
    {
        to : "2020-12-01"
    }
}

Sample:

{
dates :
    {
    }
}

Viewer Usage

There are two input fields available. The “From” date picker allows selection of the lower boundary or start date while the “To” date picker allows selection of the upper boundary or end date. The values are inclusive.

To open the date picker, click on the date picker icon corresponding the field.

Block Description
Year Top row displays the numeric value of the year.
It has two icons on each side to navigate to the previous and next year, and updates the displayed calendar accordingly.
Month Second row displays the name of the month.
It has two icons on each side to navigate to the previous and next month, and updates the displayed calendar accordingly.
Days Last block displays the days of the selected year and month.
Clicking on any day on the displayed calendar sets the field value to the selected date and closed the date picker. The selected value is reflected on the displayed date label.

If no Initial Value is set for the control, the From date is set on the first day of the current year in local time by default while the To date is set on the current date in local time.

The range of each date picker is dependent on the other. The From date cannot be later than the To date and the To date cannot be earlier than the From date. The most recent date that can be selected on the From date picker is the current value set for the To date. Likewise, the earliest date that can be selected on the To date picker is the current value set for the From date.

By default, the both fields are disabled. The date pickers can be used even when their corresponding checkboxes are unselected.

Either or both of the fields can be enabled. To enable a field, select the checkbox corresponding it. To disable a field, deselect the checkbox corresponding it.

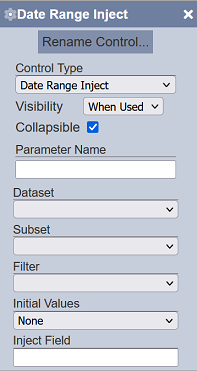

Specific Properties

Below are the fields that are specific to this control:

Field Description Mandatory Input Type Constraints Default Value
Initial Values Determines the initial set or selected values upon loading in the Dashboard Viewer. Y Select One value can be selected. Available options are:

- None
From: First day of the current year in local time
To: Current day in local time

- Today
From: Current day in local time
To: Current day in local time

- Last Week
From: Today in local time minus 6 days
To: Current day in local time

- Last Month
From: Current day in local time minus 1 month plus 1 day
To: Current day in local time

- Last Quarter
From: Current day in local time minus 3 months plus 1 day
To: Current day in local time

- Last 6 Months
From: Current day in local time minus 6 months plus 1 day
To: Current day in local time

- Last Year
From: Current day in local time minus 1 year plus 1 day
To: Current day in local time
“None”
