Download View

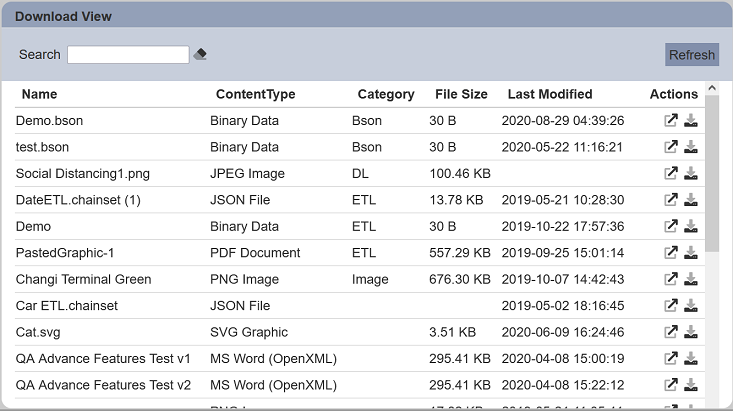

The download view shows the files that are available to be downloaded.

The following is a list of the fields in the View Properties box in the dashboard designer for download view. There are some required fields to be set for each created view.

Basic Properties

The View Properties fields vary in different charts. Below are the basic properties in the View Properties box.

Field Description Mandatory
View Type Type of chart, table or view. Yes
Title Name of the view. No

Other Properties

The other property fields are available to enhance the view. Below are the other properties in the View Properties box for the download view.

Field Description Default
Categories Defines the type of files to be displayed. Empty
Show Refresh If selected, displays the Refresh button at the upper right corner of the view. Selected
Show File Size Column If selected, displays the File Size column in the view. Selected
Show Category If selected, displays the Category column in the view. Selected
Show Last Modified Column If selected, displays the Last Modified column in the view. Selected
Maximisable If selected, places a maximise button on the top right of the view (when not in edit mode).
This will maximise the view to fill the browser.
Not selected

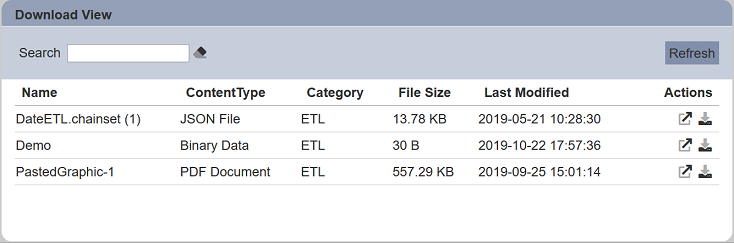

Example: Using Categories and Other Properties

There may be some types of files that are available but do not want your users to view or download them. You can use the “Categories” property to define the type of files you want your users to view and download.

In the View Properties, under the “Categories” property, enter the category you want to be available for your users. Do note that it is case-sensitive.
