Mandatory Date Range Inject

Description

This inject control is commonly used to pass a value in document structure to other Ambience components as a child element of $elx-etl-inject. This is a single-field filter that allows date range selection, which includes both start and end dates. One date picker is provided for each. When the control is enabled, both “From” and “To” fields applied. This is suitable for passing date values.

Selected values are passed in this format:

{
<Inject Field> :
    {
        from : "<yyyy-MM-dd of selected "From" date>",
        to : "<yyyy-MM-dd of selected "To" date>"
    }
}

Sample:

{
dates :
    {
        from : "2019-01-01",
        to : "2019-12-01"
    }
}

Viewer Usage

There are two input fields available. The “From” date picker allows selection of the lower boundary or start date while the “To” date picker allows selection of the upper boundary or end date. The values are inclusive.

To open the date picker, click on the date picker button corresponding the field.

Block	Description
Year	Top row displays the numeric value of the year. It has two icons on each side to navigate to the previous and next year, and updates the displayed calendar accordingly.
Month	Second row displays the name of the month. It has two icons on each side to navigate to the previous and next month, and updates the displayed calendar accordingly.
Days	Last block displays the days of the selected year and month. Clicking on any day on the displayed calendar sets the field value to the selected date and closed the date picker. The selected value is reflected on the displayed date label.

If no “Initial Value” is set for the control, the “From” date is set on the first day of the current year in local time by default while the “To” date is set on the current date in local time.

The range of each date picker is dependent on the other. The “From” date cannot be later than the “To” date and the “To” date cannot be earlier than the “From” date. The most recent date that can be selected on the “From” date picker is the current value set for the “To” date. Likewise, the earliest date that can be selected on the “To” date picker is the current value set for the “From” date.

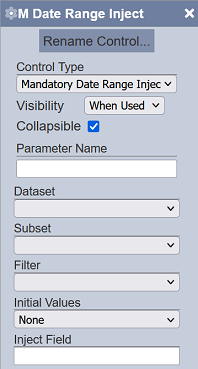

Specific Properties

Below are the fields that are specific to this control:

Field	Description	Mandatory	Input Type	Constraints	Default Value
Initial Values	Determines the initial set or selected values upon loading in the Dashboard Viewer.	Y	Select	One value can be selected. Available options are: - None From: First day of the current year in local time To: Current day in local time - Today From: Current day in local time To: Current day in local time - Last Week From: Today in local time minus 6 days To: Current day in local time - Last Month From: Current day in local time minus 1 month plus 1 day To: Current day in local time - Last Quarter From: Current day in local time minus 3 months plus 1 day To: Current day in local time - Last 6 Months From: Current day in local time minus 6 months plus 1 day To: Current day in local time - Last Year From: Current day in local time minus 1 year plus 1 day To: Current day in local time	“None”
