Scatter Chart

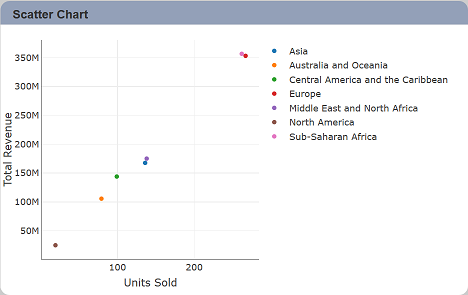

The scatter chart is used to observe the relationship between data points.

The following is a list of the fields in the View Properties box in the dashboard designer for scatter chart. There are some required fields to be set for each created view.

Basic Properties

The View Properties fields vary in different charts. Below are the basic properties in the View Properties box.

Field Description Mandatory
View Type Type of chart, table or view. Yes
Title Name of the view. No
Dataset Data used for the chart, table or view. Yes
Subset Partial data from a dataset used for the chart, table or view. No
Group Places the output of the dataset/subset into separate groups or data traces based on field selected. Yes
X X values be set on the X axis. Yes
X Aggregation Determines the operation to be applied on the values in the “X” field.
Depending on the field type of “X”, the options available may vary.
Possible options are count, average, and/or summation.
Yes
Sort X Sorts the X-Axis. Yes
Y Y values be set on the Y axis. Yes
Y Aggregation Determines the operation to be applied on the values in the “Y” field.
Depending on the field type of “Y”, the options available may vary.
Possible options are count, average, and/or summation.
Yes

The dataset and subset data derive from Datasets module. Choose the right chart from the View Type and data points to build a view. Also, be consistent in using the color scheme and formatting.

Other Properties

The other property fields are available to enhance the view. Below are the other properties in the View Properties box for the scatter chart.

Field Description Default
Controlled By Links dashboard controls to the view.
One or more controls can be added to affect the data displayed on the view.
Empty
Colour Scheme Determines the color palette used for the view. Default
Sort Group Pattern Defines the field to sort the “Group” field. Empty
Extra Lines Sets additional lines over specific views.
This is especially useful for setting indicators or threshold values on views. One or more can be added.
Empty
Drill Allows drilling down data on the selected group level. Empty
Mode Sets the display mode of the scatter chart.
For example, you can show the markers with or without text.
Markers
Text Position Determines the position of the text to be shown in the view (if text is selected in the “Mode” property). Auto
Text Format Sets the format of the displayed data point values. Empty
Legend Chooses the chart legend visibility in the Legend properties as well as how you want to display the legend. The legend orientation displays either in vertical or horizontal order. Selected
Hover Template Customise the content shown when hovering over the view. Empty
Click to Page Adds a link to another view. Empty
Click to Page Tip Adds a brief description of the link above. Empty
Maximisable If selected, places a maximise button on the top right of the view (when not in edit mode).
This will maximise the view to fill the browser.
Not selected
Margins Allows adjusting margins and padding between charts and grid. Default settings
X-Axis, Y-Axis Controls the axis’ title, visibility, formatting, show grid or line. Default settings
Advanced Add a special CSS class, data script and/or layout overview to the view. Empty
Config Options Config Options consists of the following:
- Scroll Zoom - allows the mouse wheel to zoom in/out of the chart
- Display Modebar - controls whether the bar of icons at the top right of the chart should appear always, never or only when hovering over the chart
- Hide Modebar buttons - chooses which buttons (icons) to include in the Modebar
Default settings

Example: Using Extra Line

The scatter chart is used to observe the relationship between data points. This may not show enough information. You can use the “Extra Lines” property to provide one or more extra indicators or threshold values to the view. In the example below, two extra lines are added to show the summation for total cost and total profit.

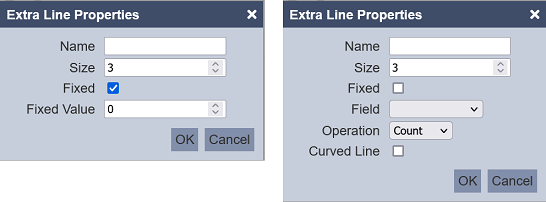

In the “Extra Lines” property, click on the icon below it. Click on the white colour bar to display the colour palette and select the desired colour. Click on the icon to display the “Extra Line Properties” dialog box. Enter the appropriate name for the line, which will be shown in the legend at the upper right corner. Select the appropriate value in “Size” field.

By default the “Fixed” field is selected. This will create a fixed line will the value entered in the “Fixed Value” field. If the “Fixed” field is un-selected, more fields will be revealed. This allows you to create a line using the values from the extra fields.

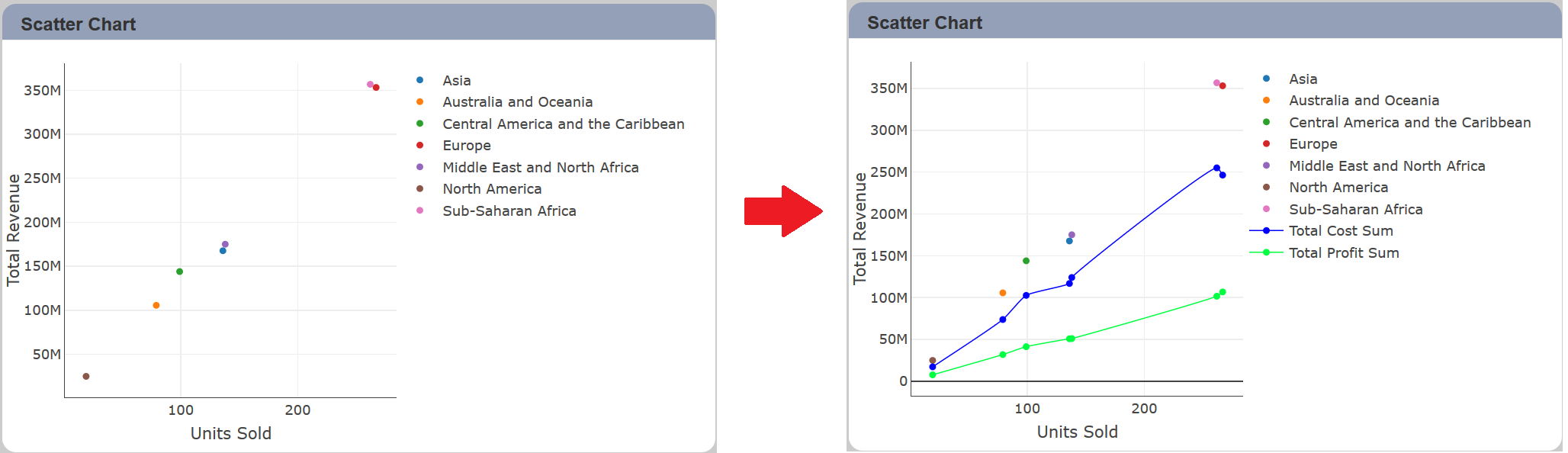

Click on the “OK” button to save the changes and close the dialog box. Two extra lines are now added onto the view, which shows the total cost and total profit summations. These two lines provide more information on the scatter chart.

You can also add an extra line to indicate a certain threshold or value. In the “Extra Line Properties” dialog box, provide an appropriate name for the line in the “Name” field. Select the “Fixed” field and enter the threshold desired in the “Fixed Value” field. Click on the “OK” button to save the change.

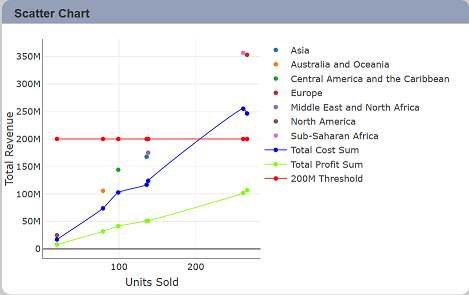

The red fixed line is added to the view to indicate a threshold of 200M.
